SMT Process 5052 Aluminum PCB Board Hot Air Soldering Leveling
  • name
  • name
  • name
  • name
  • name
  • name

SMT Process 5052 Aluminum PCB Board Hot Air Soldering Leveling

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-767.V1.0
Base Material:
2.0W/MK 75um Dielectric Material
Layer Count:
Double Side
PCB Thickness:
1.6mm ±0.16
PCB Size:
95 X 95mm=25PCS
Solder Mask:
Black
Silkscreen:
White
Copper Weight:
1oz
Surface Finish:
Hot Air Soldering Leveling(HASL),lead Free
Highlight:

SMT Process Aluminum PCB Board

,

5052 Aluminum PCB Board

Product Description

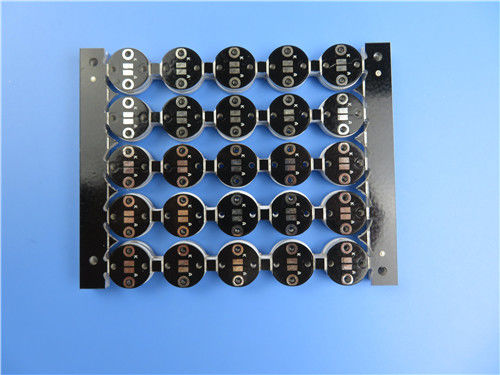

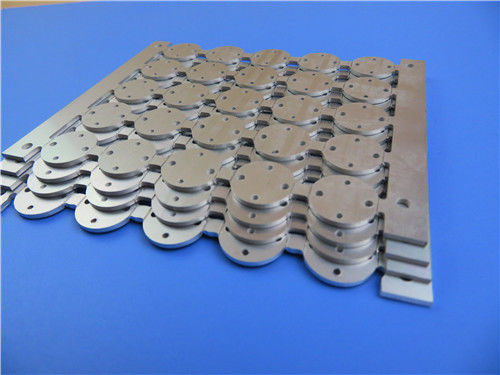

High Thermal Conductivity Aluminum PCB Board With 2W / mK for Ignitor
(PCB’s are custom-made products, the picture and parameters shown are just for reference)



General description
This is a type of aluminum PCB for the application of ignitor. It's a single layer MCPCB board at 1.6 mm thick with 2 W/MK thermal conductivity. The aluminum plate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. 25 panels are packed for shipment.



Parameter and data sheet

PCB SIZE 95 x 95mm=25PCS
BOARD TYPE IMS PCB
Number of Layers Double sided PCB, Metal core PCB
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 35um(1oz)
2.0W/MK 75um dielectric material
Aluminum base 5052
TECHNOLOGY
Minimum Trace and Space: 13mil/15mil
Minimum / Maximum Holes: 5.5mm
Number of Different Holes: 1
Number of Drill Holes: 4
Thermal resistance(°C/W) ≤0.45
Breakdown Voltage(VDC) 4000
Impedance Control no
BOARD MATERIAL
Thermal conductivity 2.0W/MK 75um dielectric material
Final foil external: 1oz
Final foil internal: 0oz
Final height of PCB: 1.6mm ±0.16
PLATING AND COATING
Surface Finish Hot Air Soldering Leveling(HASL),lead free, Sn>=2.54µm
Solder Mask Apply To: Top. 12µm Minimum.
Solder Mask Color: Black
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend TOP
Colour of Component Legend White
Manufacturer Name or Logo: as per requirement
VIA no via
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059" (0.15mm)
Board plating: 0.0030" (0.076mm)
Drill tolerance: 0.002" (0.05mm)
TEST 100% Electrical Test prior shipment
APPLICATION: LED light, Data Acquisition
Vehicle Tracking
GSM Module
Radio Communication
Portable Sound System
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.



SMT Process 5052 Aluminum PCB Board Hot Air Soldering Leveling 0



Features and benefits
SMT process
Power density and reliability are improved up 10%.
High voltage test, Impedance control test, micro-section, solder-ability test, thermal stress test, reliability test, insulation resistance test and ionic contamination test,
Professional and experienced engineers


Applications
Shopping mall lighting
Communication electronic equipment
Electronic regulator
Automobile rear lighting
