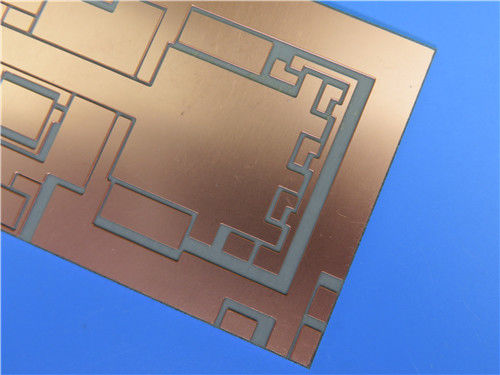

Aluminum Based 8oz Heavy Copper PCB OSP Surface Finish

MOQ:	1PCS
Price:	USD9.99-99.99
Standard Packaging:	Vacuum bags+Cartons
Delivery Period:	8-9 working days
Payment Method:	T/T
Supply Capacity:	5000PCS per month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Bicheng

Certification

UL, ISO9001, IATF16949

Model Number

BIC-755.V1.0

Base Material:

Aluminum 5052

Layer Count:

1 Layer

PCB Thickness:

1.2mm ±0.12

PCB Size:

75 X 64mm=1PCS

Solder Mask:

Silkscreen:

Copper Weigth:

Surface Finish:

Highlight:

Aluminum Based Heavy Copper PCB

8oz Heavy Copper PCB

Product Description

8oz Aluminum PCB Heavy Copper Aluminum Based PCB for High Power Electronics

1.1 General Description

This is a type of heavy copper PCB built on aluminum substrate with breakdown voltage 4000 VDC for the application of Large-current application. It's 1.2 mm thick without silkscreen and solder mask and a coating of OSP on pads. The base material is from Totking supplying single up PCB. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 25 panels are packed for shipment.

1.2 Parameter and Data Sheet

PCB SIZE	75 x 64mm=1PCS
BOARD TYPE	Aluminum PCB, IMS PCB
Number of Layers	Single sided PCB
Surface Mount Components	YES
Through Hole Components	NO
LAYER STACKUP	copper ------- 280 um(8 oz)
	1W/MK dielectric material
	Aluminum 5052 0.8mm
TECHNOLOGY
Minimum Trace and Space:	70 mil / 70 mil
Minimum / Maximum Holes:	N/A
Number of Different Holes:	N/A
Number of Drill Holes:	N/A
Thermal resistance(°C/W)	≤0.45
Breakdown Voltage(VDC)	4000
Impedance Control	no
BOARD MATERIAL
Thermal conductivity	1W/MK dielectric material, MCPCB
Final foil external:	8 OZ
Final foil internal:	0 oz
Final height of PCB:	1.2mm ±0.12
PLATING AND COATING
Surface Finish	OSP
Solder Mask Apply To:	N/A
Solder Mask Color:	N/A
Solder Mask Type:	N/A
CONTOUR/CUTTING	Routing
MARKING
Side of Component Legend	N/A
Colour of Component Legend	N/A
Manufacturer Name or Logo:	N/A
VIA	no via
FLAMIBILITY RATING	UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension:	0.0059" (0.15mm)
Board plating:	0.0030" (0.076mm)
Drill tolerance:	0.002" (0.05mm)
TEST	100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED	email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.

1.3 Features and Benefits

Optimization combination of power circuit and control circuit

Better heat dissipation of high heat generated by large current

PCB manufacturing is on required specifications.

Free-of-charge PCB panelization

1.4 Applications

Uninterrupted Power Supply

Battery Power Supply

Power Supply Components

Electric vehicle charging (commercial and industrial)

2000W Inverter
