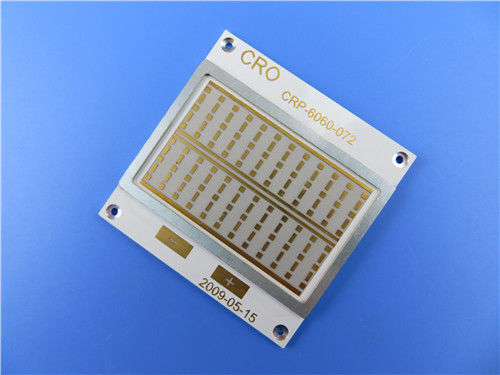

ENIG Metal Core PCB Motor Driver PCB With White Solder Mask

MOQ:	1PCS
Price:	USD9.99-99.99
Standard Packaging:	Vacuum bags+Cartons
Delivery Period:	8-9 working days
Payment Method:	T/T
Supply Capacity:	5000PCS per month

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Bicheng

Certification

UL, ISO9001, IATF16949

Model Number

BIC-753.V1.0

Base Material:

Aluminum

Layer Count:

1 Layer

PCB Thickness:

1.6mm ±0.16

PCB Size:

60 X 60mm=1PCS

Solder Mask:

White

Silkscreen:

Copper Weight:

Surface Finish:

Highlight:

ENIG Metal Core PCB

Motor Driver Metal Core PCB

ENIG Motor Driver PCB

Product Description

Composite Aluminum PCB Metal Core Printed Circuit Board Built On 5052 Plate for Motor Driver

1.1 General description

This is a type of Aluminum PCB for the application of motor driver. It's a single layer MCPCB board at 1.6 mm thick with 1 W/MK thermal conductivity. It's built with composite structure. The aluminum plate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. 20 boards are packed shipment.

1.2 Parameter and data sheet

PCB SIZE	60 x 60mm=1PCS
BOARD TYPE	Single sided aluminum PCB
Number of Layers	one layer
Surface Mount Components	YES
Through Hole Components	NO
LAYER STACKUP	copper ------- 35um(1oz)
	1W/MK dielectric material
	Aluminum 5052
TECHNOLOGY
Minimum Trace and Space:	16mil/17mil
Minimum / Maximum Holes:	3.3/7.5mm
Number of Different Holes:	1
Number of Drill Holes:	4
Thermal resistance(°C/W)	≤0.45
Breakdown Voltage(VDC)	4000
Impedance Control	no
BOARD MATERIAL
Thermal conductivity	1W/MK dielectric material, MCPCB
Final foil external:	1oz
Final foil internal:	0oz
Final height of PCB:	1.6mm ±0.16
PLATING AND COATING
Surface Finish	Electroless nickel over Immersion Gold (ENIG)( 1 µ" over 100 µ" nickel)
Solder Mask Apply To:	Top. 12µm Minimum.
Solder Mask Color:	White,PSR400 WT02
Solder Mask Type:	LPSM
CONTOUR/CUTTING	Routing, aluminum frame conbined with aluminum PCB
MARKING
Side of Component Legend	no silkscreen required
Colour of Component Legend	no silkscreen required
Manufacturer Name or Logo:	no silkscreen required
VIA	no via
FLAMIBILITY RATING	UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension:	0.0059" (0.15mm)
Board plating:	0.0030" (0.076mm)
Drill tolerance:	0.002" (0.05mm)
TEST	100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED	email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.

1.3 Features and benefits

Reduce the cost of hardware and assembly,

Eligible products rate of first production: >95%

Small quantity order is accepted

Delivery on time: >98%

Customer complaint rate: <1%

1.4 Applications

Preamplifier

Office automation equipment

CPU board

Floppy disk driver

Downlight

1.5 Our Clients are located worldwide.

Australia: Perth, Melbourne, New South Wales, South Australia, West Australia

Austria: Breitenfurt bei Wien, Graz

Bangladesh: Purana Paltan

Belgium: Deinze, Hasselt

Bulgaria: Plovdiv

Brazil: Caxias do Sul

Canada: Quebec, Ontario, Vancouver

Czech: Pardubice, Horní Pocernice

France: Villeneuve La Garenne Cedex, Montchenu

Germany: Stuttgart, Garbsen, Hamburg, Altenburg, Velbert Kleinmachnow, Potsdam

Hungary: Budapest

India: Tamilnadu

Ireland: Cork

Israel: Nettanya City, Ben-Gurion Airport, Tel Aviv, Yahud, Acre,

Italy: Peschiera Borromeo, Verona, Mezzocorona, Pietrasanta Lucca, Torino

Kuwait: Safat

Malta: Mosta

Malaysia: Selangor

Mexico: Leon Guanajuato

Portugal: Guimaraes

South Korea: Gyeonggi-DO

Serbia: Kragujevac

Sweden: Goteborg, Siljansns,

Thailand: Bangkok, Chonburi

Turkey: Ankara, Istanbul, Kocaeli

The Netherlands: Diemen

UK: Bristol, Surrey

Ukraine: Kiev

USA: Connecticut, Alaska, New York City, Miami,, New Jersey, Texas, Colorado, Largo, California, Candler

Vietnam: HoChiMinh City

Zambia: Kitwe
