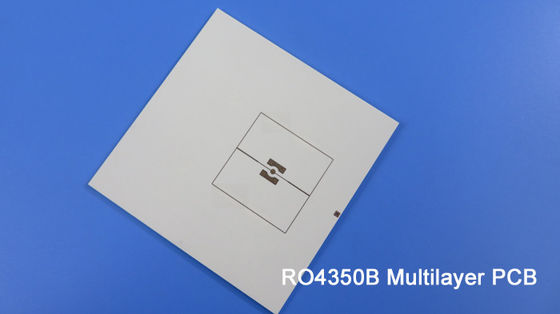

1.42mm 0.5oz Copper Rogers 4350 Mixed Signal PCB With Back Drill
  • name
  • name
  • name
  • name

1.42mm 0.5oz Copper Rogers 4350 Mixed Signal PCB With Back Drill

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-068.V1.0
Base Material:
RO4350B
Layer Count:
4 Layers
PCB Thickness:
1.42mm
PCB Size:
70mm X 125mm = 1 Piece
Solder Mask:
NO
Silkscreen:
NO
Copper Weight:
0.5oz
Surface Finish:
Immersion Gold
Highlight:

1.42mm Mixed Signal PCB

,

0.5oz Copper Mixed Signal PCB

,

0.5oz Copper Back Drilling PCB

Product Description



4 Layer High Frequency PCB Built On 2 Cores of 20mil RO4350B with Back Drill for GPS Tracker



This type of 4 Layer Rogers PCB is built on 2 core of 0.508mm (20mil) RO4350B for the application of GPS tracker. This board, we used back drilling technology to achieve the “blind via”. See the stack-up.

1.42mm 0.5oz Copper Rogers 4350 Mixed Signal PCB With Back Drill 0



Back drilling can reduce noise interference and improve signal integrity. Using back drilling successfully reduced the difficulty of PCB fabrication and avoided the use of buried /blind via process.



The specifications of the PCB are as follows:

Base material: RO4350B 20 mil + RO4450B 4 mil

Layer count: 4 layers

Type: Mixed multiplier milled separately

Format: 70mm x 125mm = 1 piece

Surface finish: Immersion gold

Copper weight: Outer layer 35 um/ Inner layer 18 um

Solder mask / Legend: Green / white

Final PCB height: 1.42 mm

Standard: IPC 6012 Class 2

Packing: Each 25 panels are packed for shipment.

Lead time: 12 working days

Shelf life: 6 months



Features and benefits

1) Excellent high frequency performance due to low dielectric tolerance and loss;

2) Low thermal coefficient of dielectric constant;

3) Back drilling reducing noise interference;

4) ISO9001, ISO14001, UL certified manufacturing factory;

5) 30000 square meter month capability;



We can see their applications in multiplexer, video transmission gear, low noise block, power divider etc.



1.42mm 0.5oz Copper Rogers 4350 Mixed Signal PCB With Back Drill 1



Parameter and data sheet

PCB SIZE 70mm x 125mm = 1 piece
BOARD TYPE Multlayer PCB
Number of Layers 4 Layers
Surface Mount Components YES
Through Hole Components YES
LAYER STACKUP Copper -----Signal 18um(0.5 oz)+plate TOP layer
RO4350B 0.508 mm
Copper -----Plain 0.018 mm
Prepreg RO4450F X 3, 0.305mm
Copper ----- Plain 0.018 mm
RO4350B 0.508 mm
Copper ------- 18um(0.5oz) + plate BOT Layer
TECHNOLOGY
Minimum Trace and Space: 4 mil / 5 mil
Minimum / Maximum Holes: 0.4 mm / 5.6 mm
Number of Different Holes: 12
Number of Drill Holes: 121
Number of Milled Slots: 0
Number of Internal Cutouts: NA
Impedance Control: N/A
Number of Gold finger: N/A
BOARD MATERIAL
Base Material: RO4350B Tg280℃, er<3.48, Rogers Corp.
Final foil external: 1 oz
Final foil internal: 0.5 oz
Final height of PCB: 1.42 mm ±10%
PLATING AND COATING
Surface Finish Immersion gold
Solder Mask Apply To: N/A
Solder Mask Color: N/A
Solder Mask Type: N/A
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend N/A
Colour of Component Legend N/A
Manufacturer Name or Logo: N/A
VIA Plated through hole(PTH), minimum size 0.4mm.
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.
