RO4350B 4 Layers 0.8mm Multilayer Circuit Board With White Silkscreen
  • name
  • name
  • name
  • name

RO4350B 4 Layers 0.8mm Multilayer Circuit Board With White Silkscreen

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-067.V1.0
Base Material:
RO4350B
Layer Count:
4 Layers
PCB Thickness:
0.8mm
PCB Size:
120 X 120mm=1PCS
Solder Mask:
Green
Silkscreen:
White
Copper Weight:
1oz
Surface Finish:
Immersion Gold
Highlight:

4 Layers Multilayer Circuit Board

,

0.8mm Multilayer Circuit Board

,

0.8mm Multi Layer Circuit Board

Product Description

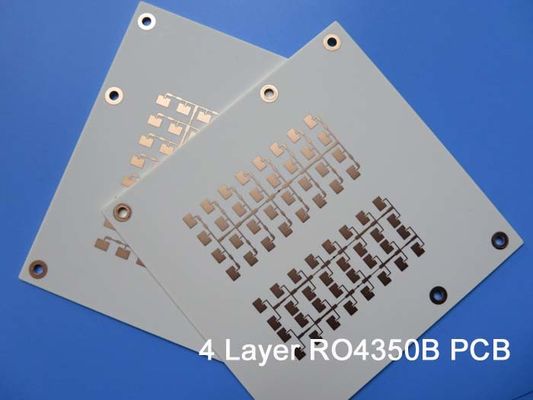

4 Layer High Frequency PCB Built On 2 Core of 10mil RO4350B with Immersion Gold for Wireless Antenna System

(Printed circuit boards are custom-made products, the picture and parameters shown are just for reference)



This is a 4-layer RO4350B high frequency PCB built on 2 10mil cores, bonded by 1 sheet of RO4450Fprepreg. As per the requirement of signal transmission, the prepreg can be 1 sheet (4mil), 2 sheets and 3 sheets. This board is for the application of Wireless Antenna System. It's 0.80 mm thick, white legend over green solder mask covered on both sides and immersion gold are on pads. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 25 panels are packed for shipment.



RO4350B 4 Layers 0.8mm Multilayer Circuit Board With White Silkscreen 0



Parameter and data sheet

PCB SIZE 120 x 120mm=1PCS
BOARD TYPE Multilayer PCB
Number of Layers 4 layers
Surface Mount Components YES
Through Hole Components YES
LAYER STACKUP copper ------- 35um(1 oz)+plate TOP layer
RO4350B 0.254mm
copper ------- 35um(1oz) Mid Layer 1
RO4450F 0.1016mm
copper ------- 35um(1oz) Mid Layer 2
RO4350B 0.254mm
copper ------- 35um(1 oz)+plate BOT layer
TECHNOLOGY
Minimum Trace and Space: 5.5 mil / 6 mil
Minimum / Maximum Holes: 0.38 mm / 3.72 mm
Number of Different Holes: 8
Number of Drill Holes: 489
Number of Milled Slots: 0
Number of Internal Cutouts: 4
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy: RO4350B Tg280℃, er<3.48, Rogers Corp.
Final foil external: 1.5 oz
Final foil internal: 1 oz
Final height of PCB: 0.8 mm ±10%
PLATING AND COATING
Surface Finish Immersion Gold
Solder Mask Apply To: TOP, 12micron Minimum
Solder Mask Color: Green, PSR-2000GT600D, Taiyo Supplied.
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend TOP
Colour of Component Legend White, IJR-4000 MW300, Taiyo brand
Manufacturer Name or Logo: Marked on the board in a conductor and leged FREE AREA
VIA Plated through hole(PTH), minimum size 0.42mm.
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.



According to actual applications, the prepreg can be chosen as more plies, for example, following micro-section shows a 3-ply of RO4450F.



RO4350B 4 Layers 0.8mm Multilayer Circuit Board With White Silkscreen 1



Features and benefits

1) RO4350B Excellent high frequency performance;

2) Low dielectric tolerance and loss;

3) ISO9000, ISO14001, IAFT16949 certified factory;

4) 30000 square meter month capability;
