Multi Layer PCB Rogers 4350 2.1mm 1oz RF Circuit Board

Multi Layer PCB Rogers 4350 2.1mm 1oz RF Circuit Board
Multi Layer PCB Rogers 4350 2.1mm 1oz RF Circuit Board Multi Layer PCB Rogers 4350 2.1mm 1oz RF Circuit Board

Large Image :  Multi Layer PCB Rogers 4350 2.1mm 1oz RF Circuit Board

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-066.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: RO4350B
Highlight:

1oz Multi Layer PCB

,

2.1mm Multi Layer PCB

,

1oz RF Circuit Board

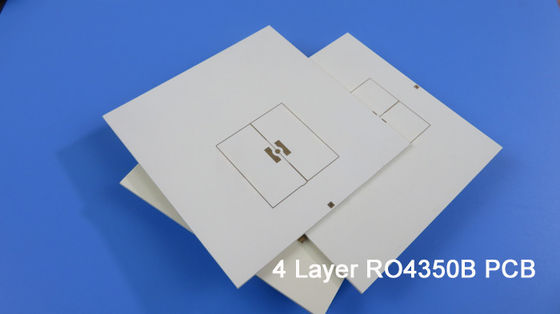

4 Layer RF Circuit Board On Rogers 60mil RO4350B and 10mil RO4350B with Back Drill for UHF Coupler



This 4 layer RF PCB is built on 60mil RO4350B and 10mil RO4350B for the application of UHF coupler. Look at the stack-up.



Multi Layer PCB Rogers 4350 2.1mm 1oz RF Circuit Board 0



Base materials are 60mil RO4350B core and 10mil RO4350B core plus 4mil RO4450F prepreg. There’re 35 μm(1oz) copper on each layer with final height 2.1mm thick. Pads are immersion gold plated. There’re back drilled via from 10mil core. Back drilling can reduce noise interference and improve signal integrity. Using back drilling successfully reduced the difficulty of PCB fabrication and avoided the use of buried /blind via.



Multi Layer PCB Rogers 4350 2.1mm 1oz RF Circuit Board 1



Features and benefits

1) RO4350B exhibits a stable dielectric constant over a broad frequency range;

2) RO4350B makes it an ideal substrate for broadband applications;

3) Delivery on time higher than 98% on-time-delivery rate;

4) Focusing on small batches and medium volume production;

5) Strict WIP inspection and monitoring as well as working instruction;



Applications

Antenna, Interference filter, Sound control switch induction, Trunk amplifier etc



PCB SIZE 91 x 98mm=1PCS
BOARD TYPE
Number of Layers Multilayer PCB, 4 Layer PCB
Surface Mount Components YES
Through Hole Components YES
LAYER STACKUP copper ------- 35um(1oz)+plate TOP layer
RO4350B 60 mil
copper ------- MidLayer 1
RO4450F 4 mil
copper ------- MidLayer 2
RO4350B 10 mil
copper ------- 35um(1oz)+plate BOT Layer
TECHNOLOGY
Minimum Trace and Space: 10mil / 10mil
Minimum / Maximum Holes: 0.3/3.21mm
Number of Different Holes: 5
Number of Drill Holes: 1680
Number of Milled Slots: 1
Number of Internal Cutouts: 1
Impedance Control no
BOARD MATERIAL
Glass Epoxy: Rogers RO4350B( core 10mil, DK=3.48) & RO4450B(PP 4mil DK=3.54)
Final foil external: 1.5oz
Final foil internal: 1oz
Final height of PCB: 2.1mm ±10%
PLATING AND COATING
Surface Finish Immersion Gold (71.1%) 2µ" over 100µ" nickel
Solder Mask Apply To: Top and Bottom layer
Solder Mask Color: N/A
Solder Mask Type: N/A
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend N/A
Colour of Component Legend N/A
Manufacturer Name or Logo: N/A
VIA Plated Through Hole(PTH), via open
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059" (0.15mm)
Board plating: 0.0030" (0.076mm)
Drill tolerance: 0.002" (0.05mm)
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.



Multi Layer PCB Rogers 4350 2.1mm 1oz RF Circuit Board 2
