High TG PCB 0.82mm Rogers 4350 Multilayer PCB Board low temperature resistance

MOQ:	1PCS
Price:	USD9.99-99.99
Standard Packaging:	Vacuum bags+Cartons
Delivery Period:	8-9 working days
Payment Method:	T/T
Supply Capacity:	5000PCS per month

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Bicheng

Certification

UL, ISO9001, IATF16949

Model Number

BIC-064.V1.0

Base Material:

RO4350B

Layer Count:

4 Layers

PCB Thickness:

0.82mm

PCB Size:

85 X 100mm=1PCS

Copper Weight:

Surface Finish:

Immersion Gold

Highlight:

IATF16949 Multilayer PCB Board

0.82mm Multilayer PCB Board

0.82mm Multilayer Printed Circuit Board

Product Description

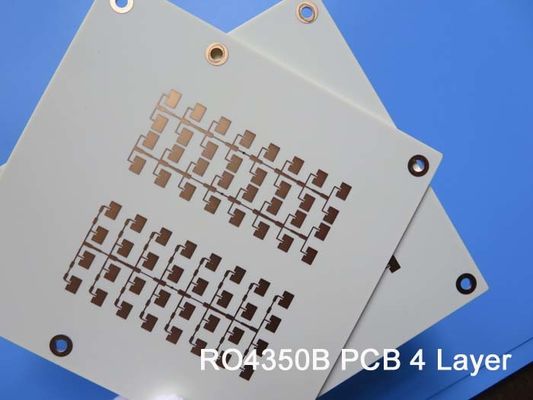

4 Layer High Frequency PCB On 6.6 Mil RO4350B and 10 Mil RO4350B for Radar System

(Printed circuit boards are custom-made products, the picture and parameters shown are just for reference)

Multilayer high frequency PCBs are made from all high frequency material inclusive of prepreg adhesive. For example, a 4-layer RO4350B PCB is a compound of 2 cores of RO4350B substrates. As is known to all, there’re 8 cores in RO4350B family, i.e. 4mil (0.101mm) to 60mil (1.524mm).

High TG PCB 0.82mm Rogers 4350 Multilayer PCB Board low temperature resistance 0

So it’s very interesting that stack-up of 4 layers can be done in many different ways.

Today we talked is a 4-layer RO4350B high frequency PCB built on 6.6mil and 10mil RO4350B substrate for the application of radar system. This RF board has a thickness of 0.82mm with a minimum 4mil track and 5mil gap. This is a pure high frequency multilayer PCB with RO4450B as dielectric prepreg. Other specifications are white silkscreen over green solder mask, immersion gold plated on pads. Entire board is supplied 1 up per panel. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 50 panels are packed for shipment. Here’s detail of stack-up:

High TG PCB 0.82mm Rogers 4350 Multilayer PCB Board low temperature resistance 1

Features and benefits

1) Excellent high frequency performance due to low dielectric tolerance and loss;

2) Good high temperature and low temperature resistance(-192℃-260℃);

3) Eligible products rate of first production: >95%

4) Delivery on time: >98%

5) Customer complaint rate: <1%

High TG PCB 0.82mm Rogers 4350 Multilayer PCB Board low temperature resistance 2

Applications

Vario-coupler, Tower-mounted booster, Power amplifier, Acoustic detection sensors, RF Switches,

Parameter and data sheet

PCB SIZE	85 x 100mm=1PCS
BOARD TYPE	Multilayer PCB
Number of Layers	4 Layers
Surface Mount Components	YES
Through Hole Components	No
LAYER STACKUP	Copper ------- 35um(1 oz)+plate TOP layer
	Dielectric RO4350B 0.168mm (6.6 mil)
	Copper ------- 35um(1oz)
	Dielectric RO4350F 0.203mm (8 mil)
	Copper ------ 35um (1oz)
	Dielectric RO4450B 0.254mm ( 10 mil)
	Copper ------35um (1oz) + plate Bottom Layer
TECHNOLOGY
Minimum Trace and Space:	4 mil / 5 mil
Minimum / Maximum Holes:	0.25 mm / 2.0 mm
Number of Different Holes:	5
Number of Drill Holes:	175
Number of Milled Slots:	0
Number of Internal Cutouts:	3
Impedance Control:	no
Number of Gold finger:	0
BOARD MATERIAL
Glass Epoxy:	RO4350B Tg280℃, er<3.48, Rogers Corp.
Final foil external:	1.5 oz
Final foil internal:	1 oz
Final height of PCB:	0.82 mm ±0.1mm
PLATING AND COATING
Surface Finish	Immersion gold
Solder Mask Apply To:	N/A
Solder Mask Color:	N/A
Solder Mask Type:	N/A
CONTOUR/CUTTING	Routing
MARKING
Side of Component Legend	N/A
Colour of Component Legend	N/A
Manufacturer Name or Logo:	N/A
VIA	Plated through hole(PTH), minimum size 0.25mm.
FLAMIBILITY RATING	UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension:	0.0059"
Board plating:	0.0029"
Drill tolerance:	0.002"
TEST	100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED	email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.
