High Frequency PCB Rogers 20mil 0.508mm RO4350B

High Frequency PCB Rogers 20mil 0.508mm RO4350B
High Frequency PCB Rogers 20mil 0.508mm RO4350B High Frequency PCB Rogers 20mil 0.508mm RO4350B High Frequency PCB Rogers 20mil 0.508mm RO4350B

Large Image :  High Frequency PCB Rogers 20mil 0.508mm RO4350B

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-003.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Material: Rogers 4350B PCB Thickness: 0.6mm
Layer Count: 2 Layers Surface Finish: Immersion Gold
Copper Weight: 1oz PCB Size: 26x83=1PCS
High Light:

Rogers 4350B RF PCB Board


Hydrocarbon Ceramic RF PCB Board


Rogers 4350B Splitter PCB

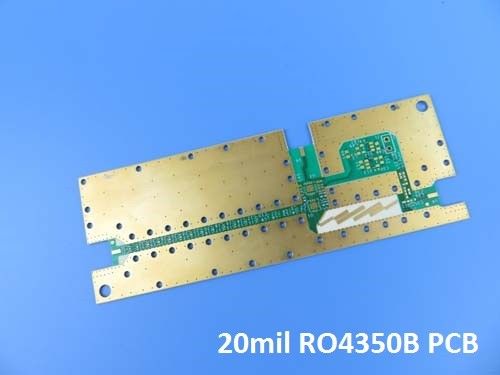

High Frequency PCB Rogers 20mil 0.508mm RO4350B

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)


RO4350B hydrocarbon ceramic laminates are designed to offer superior high frequency performance and low cost circuit fabrication. The selection of laminates typically available to designers is significantly reduced once operational frequencies increase to 500 MHz and above. RO4350B material possesses the properties needed by designers of RF microwave circuits and matching networks and controlled impedance transmission lines. Low dielectric loss allows RO4350B material to be used in many applications where higher operating frequencies limit the use of conventional circuit board materials.


For RO4350B PCBs, we can provide you with single sided board, double sided board, multi-layer board and hybrid types. RO4350B PCBs have wide thickness. There are the standard thickness such as 10 mils, 20 mils, 30 mils, 60mils etc. and non-standard thickness such as 4 mils, 6.6 mils,13.3 mils and 16.6 mils etc. Finished copper on PCBs is 1oz and 2oz.


Our maximum PCB size on high frequency materials is 400mm by 500mm, it can be a single board in the sheet and also can different designs in this panel. Solder mask of green, black, red and yellow etc is available in house.


There’s immersion gold, HASL, immersion silver, immersion tin, bare copper etc. for pads plating.


PCB Specifications

PCB SIZE 26 x 83mm=1PCS
Number of Layers Double sided PCB, 2 Layer PCB
Surface Mount Components YES
Through Hole Components no
LAYER STACKUP copper ------- 35um(1oz)+plate TOP layer
RO4350B 20mil (0.508mm)
copper ------- 35um(1oz)+plate BOT Layer
Minimum Trace and Space: 5.98mil/6.18mil
Minimum / Maximum Holes: 0.3/3.2mm
Number of Different Holes: 5
Number of Drill Holes: 431
Number of Milled Slots: 0
Number of Internal Cutouts: no
Impedance Control no
Glass Epoxy: RO4350B 20mil (0.508mm), Tg 288℃
Final foil external: 1.5oz
Final foil internal: 0oz
Final height of PCB: 0.6mm ±0.1
Surface Finish Immersion Gold (81.1%) 2µ" over 100µ" nickel
Solder Mask Apply To: Top and Bottom, 12micron Minimum
Solder Mask Color: Green, LP-4G G-05, Nanya supplied
Solder Mask Type: LPSM
Side of Component Legend TOP
Colour of Component Legend White, S-380W, Taiyo Supplied.
Manufacturer Name or Logo: Marked on the board in a conductor and leged FREE AREA
VIA Plated Through Hole(PTH)
Outline dimension: 0.0059" (0.15mm)
Board plating: 0.0030" (0.076mm)
Drill tolerance: 0.002" (0.05mm)
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.


High Frequency PCB Rogers 20mil 0.508mm RO4350B 0


The RO4350B PCB finds typical applications in the following areas:

1) Automotive Radar and Sensors: The PCB is well-suited for use in automotive radar systems and sensors, providing reliable signal transmission and processing capabilities.


2) Cellular Base Station Antennas: RO4350B is commonly employed in cellular base station antennas, allowing for efficient and effective wireless communication.


3) Direct Broadcast Satellites: The PCB is utilized in direct broadcast satellite systems, facilitating the transmission and reception of satellite signals.


4) Low Noise Block (LNB): RO4350B is suitable for LNB applications, which are essential components in satellite television reception systems, ensuring optimal signal reception and processing.


5) Power Amplifiers: The PCB can be employed in power amplifiers used in various applications, including wireless communication systems, ensuring efficient signal amplification.


6) RFID (Radio Frequency Identification): RO4350B is utilized in RFID systems, enabling wireless identification and tracking of objects using radio frequency technology.


Data sheet of Rogers 4350B (RO4350B )

RO4350B Typical Value
Property RO4350B Direction Units Condition Test Method
Dielectric Constant,εProcess 3.48±0.05 Z   10 GHz/23 IPC-TM-650 Clamped Stripline
Dielectric Constant,εDesign 3.66 Z   8 to 40 GHz Differential Phase Length Method
Dissipation Factortan,δ 0.0037
Z   10 GHz/23
2.5 GHz/23
Thermal Coefficient of ε +50 Z ppm/ -50to 150 IPC-TM-650
Volume Resistivity 1.2 x 1010   MΩ.cm COND A IPC-TM-650
Surface Resistivity 5.7 x109   COND A IPC-TM-650
Electrical Strength 31.2(780) Z Kv/mm(v/mil) 0.51mm(0.020") IPC-TM-650
Tensile Modulus 16,767(2,432)
MPa(ksi) RT ASTM D 638
Tensile Strength 203(29.5)
MPa(ksi) RT ASTM D 638
Flexural Strength 255
  IPC-TM-650 2.4.4
Dimensional Stability <0.5 X,Y mm/m
after etch+E2/150 IPC-TM-650 2.4.39A
Coefficient of Thermal Expansion 10
ppm/ -55to288 IPC-TM-650 2.4.41
Tg >280   TMA A IPC-TM-650
Td 390   TGA   ASTM D 3850
Thermal Conductivity 0.69   W/M/oK 80 ASTM C518
Moisture Absorption 0.06   % 48hrs immersion 0.060"
sample Temperature 50
ASTM D 570
Density 1.86   gm/cm3 23 ASTM D 792
Copper Peel Stength 0.88
after solder float 1 oz.
EDC Foil
IPC-TM-650 2.4.8
Flammability (3)V-0       UL 94
Lead-free Process Compatible Yes
