Immersion Gold 4 Layers High Speed PCB 0.8mm Thickness 94V-0 Rating

Products

Metal Core PCB

Ms. Ivy Deng

sales10@bichengpcb.com

86-755-27374847

Contact Now

Immersion Gold 4 Layers High Speed PCB 0.8mm Thickness 94V-0 Rating

MOQ:	1PCS
Standard Packaging:	Vacuum bags+Cartons
Delivery Period:	8-9 working days
Payment Method:	T/T
Supply Capacity:	5000PCS per month

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Bicheng

Certification

UL, ISO9001, IATF16949

Model Number

BIC-174.V1.0

Base Material:

R-5775G

Layer Count:

4 Layers

PCB Thickness:

0.8 Mm ±0.1

PCB Size:

95 X 96mm=1up

Solder Mask:

Black

Silkscreen:

White

Copper Weight:

Inner Layer Is 0.5 Ounces And The Outer Layer Is 1 Ounce.

Surface Finish:

Immersion Gold

Highlight:

Immersion Gold 4 Layers PCB

0.8mm Thickness High Speed PCB

94V-0 High Speed PCB

Product Description

Brief Introduction

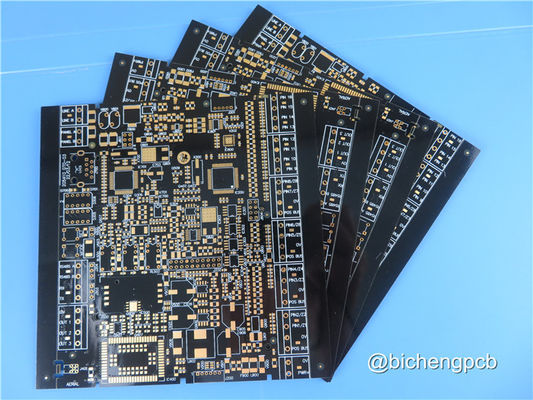

This type of 4-layer circuit board is built on Megtron6 (M6) R-5775G high speed low loss material. Outer layer with 1oz copper weight and black solder mask printed on both top and bottom side.Pads are plated with electroless nickel and immersion gold (ENIG). Every 50 boards are vaccum packed for shipment.

PCB Specifications

PCB SIZE	95 x 96mm=1up
BOARD TYPE	Multilayer PCB
Number of Layers	4 layers
Surface Mount Components	YES
Through Hole Components	YES
LAYER STACKUP	copper ------- 17um(0.5 oz)+plate TOP layer
	Prepreg
	copper ------- 18um(0.5 oz)
	R-5775G 0.25mm
	copper ------- 18um(0.5 oz)
	Prepreg
	copper ------- 17um(0.5 oz)+plate BOT layer
TECHNOLOGY
Minimum Trace and Space:	4 mil / 4 mil
Minimum / Maximum Holes:	0.3 mm / 6.0 mm
Number of Different Holes:	2
Number of Drill Holes:	6
Number of Milled Slots:	1
Number of Internal Cutouts:	no
Impedance Control:	no
Number of Gold finger:	0
BOARD MATERIAL
Glass Epoxy:	R-5775G
Final foil external:	1.0 oz
Final foil internal:	0.5 oz
Final height of PCB:	0.8 mm ±0.1
PLATING AND COATING
Surface Finish	Immersion gold, 22%
Solder Mask Apply To:	Top Layer and Bottom layer
Solder Mask Color:	Black
Solder Mask Type:	Kuangshun
CONTOUR/CUTTING	Routing
MARKING
Side of Component Legend	Top Layer
Colour of Component Legend	White
Manufacturer Name or Logo:	N/A
VIA	Plated through hole(PTH), minimum size 0.3mm.
FLAMIBILITY RATING	94V-0
DIMENSION TOLERANCE
Outline dimension:	0.0059"
Board plating:	0.0029"
Drill tolerance:	0.002"
TEST	100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED	email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.

Immersion Gold 4 Layers High Speed PCB 0.8mm Thickness 94V-0 Rating 0

Manufacturing Process of Multi-layer PTH PCB (via filled)

(1). Material Shearing

(2). Inner Layer Dry Film

(3). Inner Layer Etching

(4). AOI 1

(5). Black Oxidation

(6). Milling Outline Frame

(7). Inner Layer Drilling

(8). PTH 1

(9). Inner Layer Dry Film

(10). Pattern Plating 1

(11). Via filled

(12). Outer Layer Drilling

(13). PTH 2

(14). Pattern Plating 2

(15). Outer Layer Dry Film

(16). Copper-tin Electro-Plating

(17). Peeling and Etching

(18). AOI 2

(19). Solder Mask

(20). Silkscreen Printing

(21). Surface Finishing

(22). Electrical Testing

(23). Prolie Contouring

(24). FQC

(25). Packaging

(26). Delivery

Immersion Gold 4 Layers High Speed PCB 0.8mm Thickness 94V-0 Rating 1

Main Applications:

Antenna (Automotive millimeter wave radar, Base station)

ICT infrastructure equipment

Measuring instrument

Super computer

Immersion Gold 4 Layers High Speed PCB 0.8mm Thickness 94V-0 Rating 2

CAPABILITY

2500-3000 types each month.

SERVICE AREA

North America, Oceania, Southeast Asia, Eastern Europe, Africa, Latin America, Western & Southern Europe, Northern Europe, Central & South Asian, Middle East.
