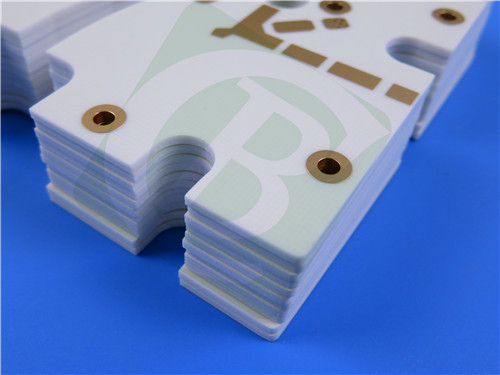

20mil TFA PCB 2-Layer 1OZ RF Circuit Board Immersion Gold

Introducing our 2-layer rigid PCB, built with TFA615 material—an aerospace-grade high-frequency substrate designed for demanding applications. With exceptional electrical, thermal, and mechanical properties, it’s engineered to deliver reliability in critical scenarios like aerospace equipment and radar systems.

Stack-up

Copper_layer_1: 35μm

TFA615 Core: 0.508mm (20mil)

Copper_layer_2: 35μm

PCB details

What Makes TFA615 Unique?

About TFA Series

TFA series substrates are polytetrafluoroethylene (PTFE) ceramic composites, crafted without traditional glass fiber cloth. Instead, they use a new prefabrication process and special lamination, resulting in aerospace-grade performance that rivals foreign alternatives. Key traits:

-No glass fiber cloth, eliminating "fiberglass effect" in electromagnetic wave propagation

-Uniform nano-ceramic mix for stable frequency performance and minimal dielectric loss

-Low anisotropy (X/Y/Z) and copper-matched thermal expansion

-Stable dielectric temperature characteristics

-Four dielectric constant options: 2.94 (TFA294), 3.0 (TFA300), 6.15 (TFA615), 10.2 (TFA1020)

TFA615 Features

-Dielectric constant (Dk): 6.15±0.12 at 10GHz

-Dissipation factor: 0.0015 at 10GHz; 0.0017 at 20GHz

-CTE (–55°C to 288°C): X=16 ppm/°C, Y=16 ppm/°C, Z=29 ppm/°C

-Thermal conductivity: 0.8 W/mk

-Moisture absorption: 0.06%

-UL 94-V0 rating

-Td (decomposition temperature): 503℃

Ideal Applications

-Aerospace equipment, spacecraft, and in-cabin systems

-Microwave components and antennas (including phase-sensitive types)

-Early warning radars and airborne radars

-Phased array antennas and beamforming networks

-Satellite communications and navigation systems

-Power amplifiers

Compliance Standard

This TFA615 PCB strictly complies with IPC-Class-2 standards, ensuring consistent quality, reliability, and performance across all units—critical for meeting the rigorous demands of aerospace and high-frequency applications.

Artwork Format

To facilitate seamless production integration, the artwork for this PCB is supplied in Gerber RS-274-X format, a widely accepted industry standard that simplifies manufacturing workflows and ensures precision in fabrication.

Global Reach

We offer worldwide availability for this high-performance PCB, making it accessible to engineers, manufacturers, and organizations across all regions.

Conclusion

This PCB with TFA615 material stands out as a top-tier solution for high-frequency, mission-critical applications. It combines precision engineering with global availability, making it a versatile and trustworthy choice for projects where performance and dependability are paramount. Whether you’re working on satellite communications or phased array antennas, this TFA615 PCB delivers the quality and consistency needed to succeed in the most demanding scenarios.
