| MOQ: | 1PCS |
| Price: | USD9.99-99.99 |
| Standard Packaging: | Vacuum bags+Cartons |
| Delivery Period: | 8-9 working days |
| Payment Method: | T/T |
| Supply Capacity: | 5000PCS per month |

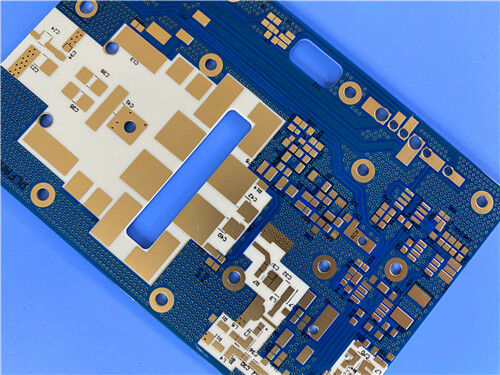

In search of a cost-effective 2-layer rigid RF PCB that delivers superior high-frequency performance and signal integrity? This 2-layer rigid RF PCB is constructed with RO4350B Low Profile—a proprietary laminate developed by Rogers—and features an Immersion Gold surface finish. Adhering to IPC-Class 2 quality standards, this PCB delivers consistent, reliable performance for critical applications such as cellular base station antennas, high-speed digital equipment, and satellite LNBs. With a focus on low conductor loss, flexible design capabilities, and cost-efficient manufacturing, it emerges as the optimal choice for engineers and procurement teams seeking a high-performance, easy-to-produce substrate for high-frequency RF and digital projects.
PCB Specifications
| Construction Item | Details |
| Base Material | RO4350B Low Profile – A proprietary Rogers laminate integrated with reverse treated foil, providing low conductor loss and cost-effective manufacturing capabilities |
| Layer Count | 2-Layer – A rigid PCB structure optimized to support high-frequency performance and compatibility with standard manufacturing processes |
| Board Dimensions | 78mm x 101mm (1PCS), crafted to fit standard assembly setups with consistent dimensional accuracy |
| Trace & Space | Minimum 5/6 mils, allowing for the design of compact, fine-line circuits without sacrificing signal integrity |
| Minimum Hole Size | 0.25mm, compatible with the high-precision component mounting needs of RF and digital applications |
| Vias | No blind vias, simplifying the manufacturing process while ensuring secure interlayer connections for high-frequency signal transmission |
| Finished Board Thickness | 0.2mm, providing lightweight and compact design flexibility for space-constrained high-frequency and digital equipment |
| Copper Weight | 1oz (1.4 mils) on outer layers (35μm), delivering excellent conductivity for high-frequency RF and digital signals |
| Via Plating Thickness | 20μm, complying with IPC-Class 2 standards to ensure reliable electrical connections and mechanical durability across various operating environments |
| Surface Finish | Immersion Gold, ensuring excellent solderability, corrosion resistance, and long-term reliability for high-precision assemblies |
| Silkscreen & Solder Mask | Top Silkscreen: White; Bottom Silkscreen: No; Top Solder Mask: Blue; Bottom Solder Mask: No – Achieving a balance between visibility and signal performance |
| Quality Testing | 100% electrical testing is conducted before shipment, ensuring full functionality and eliminating defective units for reliable deployment |
PCB Stack-up Configuration
| Stack-up Component | Specifications & Description |
| Copper Layer 1 | 35μm – Ensures efficient signal transmission and thermal conductivity for high-frequency RF and digital applications |
| Rogers RO4350B LoPro Substrate | 4mil (0.102mm) – Serves as the foundation for the PCB’s superior high-frequency performance and is designed for cost-efficient manufacturing |
| Copper Layer 2 | 35μm – Provides consistent conductivity and symmetry to ensure balanced signal flow in high-frequency and digital circuits |
Artwork Format & Availability
Artwork Format: Supplied in Gerber RS-274-X – The industry-standard format for PCB manufacturing, ensuring compatibility and guaranteeing reliable production.
Availability: Worldwide – We provide global shipping to meet the needs of engineers and manufacturers around the world, with delivery times that adhere to industry standards.
![]()
RO4350B Low Profile Substrate: The Key to High-Frequency, Cost-Effective Performance

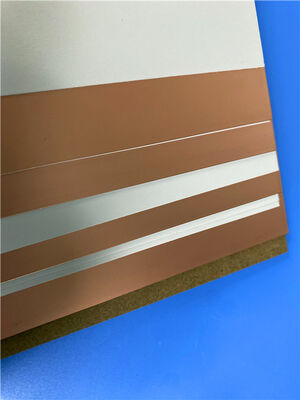

Rogers’ RO4350B Low Profile laminate serves as the cornerstone of the PCB’s exceptional high-frequency performance and cost efficiency, engineered to meet the demands of modern RF and digital applications:
RO4350B low profile laminates leverage a proprietary Rogers technology that allows reverse treated foil to bond with standard RO4350B dielectric. This innovative design creates a laminate with low conductor loss, which improves insertion loss and signal integrity while retaining all the valuable characteristics of the standard RO4350B laminate system. RO4350B hydrocarbon ceramic laminates are specifically engineered to deliver superior high-frequency performance along with cost-efficient circuit manufacturing. The result is a low-loss material that can be produced using standard epoxy/glass (FR-4) processes, removing the need for specialized via preparation such as sodium etch—thus significantly lowering manufacturing costs.
Key Features of RO4350B Low Profile PCB
RO4350B Low Profile offers outstanding electrical and mechanical features tailored specifically for high-frequency, cost-sensitive applications, including:
Dielectric Constant: 3.48 +/- 0.05 at 10 GHz/23°C – Ensures stable signal propagation for high-frequency RF applications
Dissipation Factor: 0.0037 at 10 GHz/23°C – Low dielectric loss, which is critical for preserving signal integrity and reducing insertion loss
High Temperature Performance: Td > 390°C, High Tg greater than 280°C (TMA) – Supports high-temperature processing and reliable operation in harsh environments
High Thermal Conductivity: 0.69 W/mK – Enables efficient heat dissipation, protecting components in high-power applications
Low Z-axis Coefficient of Thermal Expansion: 32 ppm/°C – Enhances dimensional stability and reliability across temperature fluctuations
Copper-Matched Coefficient of Thermal Expansion (-55 to 288°C): X-axis 10 ppm/°C, Y-axis 12 ppm/°C, Z-axis 32 ppm/°C – Reduces thermal stress and improves long-term reliability
UL 94-V0 Flammability – Meets strict fire safety standards for electronic equipment
Lead-Free Process Compatible – Aligns with global environmental regulations and modern manufacturing practices
Key Benefits of RO4350B Low Profile PCB
The RO4350B Low Profile substrate provides numerous advantages for engineers and manufacturers, including:
Lower insertion loss enables higher operating frequency designs (even exceeding 40 GHz) – Expanding the application scope for high-frequency projects
Reduced passive inter-modulation (PIM) for base station antennas – Enhancing signal quality and performance in communication systems
Improved thermal performance due to lower conductor loss – Extending component lifespan and reliability
Multilayer PCB capability – Offering design flexibility for complex, high-density circuits
Design flexibility – Adapting to diverse RF and digital application requirements
High temperature processing – Compatible with rigorous manufacturing and operating conditions
Meets environmental concerns – Compliant with lead-free and safety standards
CAF resistant – Enhancing long-term reliability by preventing the formation of conductive anodic filaments
Applications
RO4350B Low Profile 2-layer RF PCB is specifically engineered for high-frequency, cost-effective applications, including:
![]()
