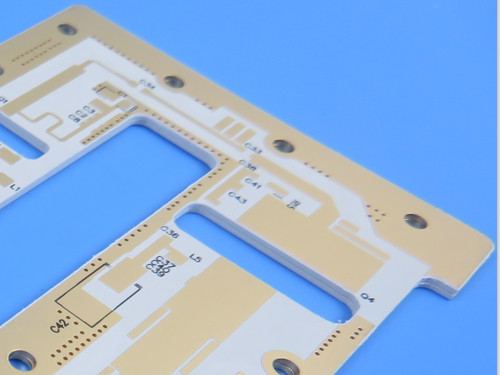

Rogers RO3035 PCB Double-layer 5mil Immersion Gold pcb Circuits

In the ever-evolving realm of technology, the need for high-performance printed circuit boards (PCBs) is more critical than ever. Our newly released 2-layer PCB, crafted from top-tier Rogers RO3035 material, is designed to meet the rigorous demands of contemporary applications, particularly in the high-frequency sectors like 5G and millimeter-wave technologies.

Unmatched Material: Rogers RO3035

At the heart of this PCB lies Rogers RO3035, a ceramic-filled, PTFE-based laminate renowned for its exceptional performance in high-frequency circuits. This laminate is part of the RO3000 series, which is engineered to deliver a stable dielectric constant across a range of temperatures. Such stability is essential for maintaining optimal performance in challenging environments.

Detailed Specifications

Here are the key specifications of our 2-layer PCB:


- Base Material: Rogers RO3035


- Layer Count: 2 Layers


- Dimensions: 67.1 mm x 57.6 mm (2 Types, 2 PCS)


- Minimum Trace/Space: 4/5 mils


- Minimum Hole Size: 0.2 mm


- Finished Board Thickness: 0.2 mm


- Finished Copper Weight: 1 oz (1.4 mils) on outer layers


- Via Plating Thickness: 20 μm


- Surface Finish: Immersion Gold


- Silkscreen: None on both sides


- Solder Mask: None on both sides


- Electrical Testing: 100% tested before shipment

PCB Stackup

The stackup configuration is as follows:


- Copper Layer 1: 35 μm
- Rogers RO3035 Substrate: 5 mil (0.127 mm)
- Copper Layer 2: 35 μm

Key Features and Advantages

Superior Electrical Performance

The Rogers RO3035 laminate offers a dielectric constant of 3.5 ± 0.05 at 10 GHz, paired with a low dissipation factor of 0.0015. These attributes ensure minimal signal loss and high efficiency, making it suitable for applications reaching up to 30-40 GHz.

Robust Mechanical Properties

With a low coefficient of thermal expansion (CTE) that closely matches that of copper, this material promotes reliable surface-mounted assemblies. This characteristic is especially beneficial for applications sensitive to temperature fluctuations, ensuring outstanding dimensional stability.

Flexible Manufacturing Options

Our PCB is designed to accommodate various production needs. Whether you require prototypes, small batches, or large-scale manufacturing, we provide cost-effective laminate pricing without compromising quality. This flexibility makes it the ideal choice for engineers and designers across different projects.

Versatile Applications

This 2-layer RO3035 PCB is adaptable to a multitude of applications, including:


- Automotive Radar Systems: Enhancing safety and navigation capabilities in modern vehicles.


- Global Positioning Systems (GPS): Delivering reliable satellite communication performance.


- Cellular Telecommunications: Power amplifiers and antennas for efficient network communication.


- Wireless Communications: Patch antennas that support seamless connectivity for diverse devices.


- Remote Meter Readers: Streamlining accurate data transmission in utility management.

Global Availability and Compliance

This high-performance PCB is available for worldwide shipping and adheres to IPC-Class-2 standards. This certification ensures that our product meets stringent industry requirements for quality and reliability, providing you with a superior PCB solution.

Conclusion

In summary, this 2-layer PCB made from Rogers RO3035 is engineered to excel in high-frequency applications, delivering outstanding performance and reliability. With its advanced material properties, flexible manufacturing options, and wide-ranging applications, it stands as a premier choice for engineers and designers alike.

Opt for our RO3035 PCB for your next project and discover the impact of high-quality materials and expert engineering. For further information or to place an order, reach out to us today and elevate your electronic designs to new heights!
