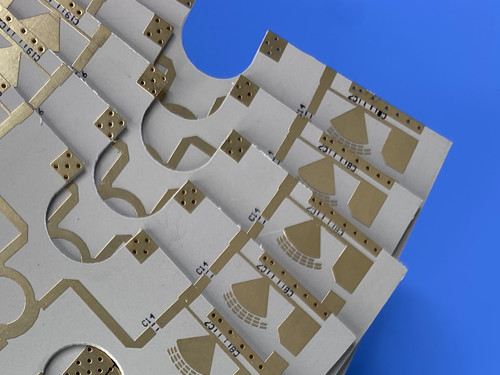

In the rapidly evolving world of technology, the need for high-performance printed circuit boards (PCBs) is at an all-time high. Our newly shipped 2-layer PCB, made from Rogers RO3006 material, is specifically designed to address the stringent requirements of contemporary applications.
PCB Construction and Specifications
Advanced Material: Rogers RO3006
At the heart of this PCB is Rogers RO3006, a ceramic-filled PTFE composite known for its superior electrical and mechanical stability. This material is specifically designed for high-frequency applications, ensuring consistent performance across a range of temperatures and frequencies.
Technical Specifications
The specific details of this 2-layer PCB are as follows:
- Dimensions: 76 mm x 52 mm (1 PCS)
- Layer Count: 2 Layers
- Minimum Trace/Space: 5/4 mils
- Minimum Hole Size: 0.35 mm
- Finished Board Thickness: 0.71 mm
- Finished Copper Weight: 1 oz (1.4 mils) on outer layers
- Via Plating Thickness: 20 μm
- Surface Finish: Electroless Nickel Immersion Gold (ENIG)
- Silkscreen: White on the top, none on the bottom
- Solder Mask: Green on the top, none on the bottom
PCB Stackup
The PCB stackup is structured as follows:
- Copper Layer 1: 35 μm
- Rogers RO3006 Substrate: 25 mil (0.635 mm)
- Copper Layer 2: 35 μm
| Property |
RO3006 |
Direction |
Units |
Condition |
Test Method |
| Dielectric Constant,εProcess |
6.15±0.05 |
Z |
|
10 GHz/23℃ |
IPC-TM-650 2.5.5.5 Clamped Stripline |
| Dielectric Constant,εDesign |
6.5 |
Z |
|
8GHz to 40 GHz |
Differential Phase Length Method |
| Dissipation Factor,tanδ |
0.002 |
Z |
|
10 GHz/23℃ |
IPC-TM-650 2.5.5.5 |
| Thermal Coefficient of ε |
-262 |
Z |
ppm/℃ |
10 GHz -50℃to 150℃ |
IPC-TM-650 2.5.5.5 |
| Dimensional Stability |
0.27
0.15 |
X
Y |
mm/m |
COND A |
IPC-TM-650 2.2.4 |
| Volume Resistivity |
105 |
|
MΩ.cm |
COND A |
IPC 2.5.17.1 |
| Surface Resistivity |
105 |
|
MΩ |
COND A |
IPC 2.5.17.1 |
| Tensile Modulus |
1498
1293 |
X
Y |
MPa |
23℃ |
ASTM D 638 |
| Moisture Absorption |
0.02 |
|
% |
D48/50 |
IPC-TM-650 2.6.2.1 |
| Specific Heat |
0.86 |
|
j/g/k |
|
Calculated |
| Thermal Conductivity |
0.79 |
|
W/M/K |
50℃ |
ASTM D 5470 |
Coefficient of Thermal Expansion
(-55 to 288℃) |
17
17
24 |
X
Y
Z |
ppm/℃ |
23℃/50% RH |
IPC-TM-650 2.4.4.1 |
| Td |
500 |
|
℃ TGA |
|
ASTM D 3850 |
| Density |
2.6 |
|
gm/cm3 |
23℃ |
ASTM D 792 |
| Copper Peel Stength |
7.1 |
|
Ib/in. |
1oz,EDC After Solder Float |
IPC-TM 2.4.8 |
| Flammability |
V-0 |
|
|
|
UL 94 |
| Lead-free Process Compatible |
Yes |
|
|
|
|
Key Features and Benefits
Exceptional Electrical Properties
Rogers RO3006 boasts a dielectric constant of 6.15 ± 0.15 at 10 GHz, along with a low dissipation factor of 0.002. These characteristics ensure minimal signal loss and high efficiency, making it ideal for high-frequency applications.
Mechanical Stability
The material's low coefficient of thermal expansion (CTE) aligns closely with that of copper, promoting reliable surface-mounted assemblies. This feature is particularly beneficial for applications sensitive to temperature fluctuations, ensuring excellent dimensional stability.
Cost-Effective Manufacturing
We offer solutions for prototype, small batch, and volume manufacturing. Our PCBs are designed to be cost-effective across all production scales, providing economical laminate pricing without compromising quality. This versatility makes them an ideal choice for prototyping as well as small and large-scale production.
Typical Applications
This 2-layer RO3006 PCB is versatile and well-suited for various applications, including:
- Automotive Radar Systems: Enhancing safety features and navigation capabilities.
- Cellular Telecommunications: Used in power amplifiers and antennas for efficient communication.
- Global Positioning Systems (GPS): Providing reliable performance in satellite communication.
- Wireless Communications: Ideal for patch antennas, enabling seamless connectivity.
- Remote Meter Readers: Facilitating accurate data transmission in utility management.
Global Availability and Standards Compliance
This high-performance PCB is available for worldwide shipping, adhering to IPC-Class-2 standards. This certification guarantees that our product meets industry expectations for reliability and quality, ensuring that you receive a top-tier PCB for your projects.
Conclusion
In conclusion, this newly shipped 2-layer PCB made from Rogers RO3006 is designed to excel in a variety of high-frequency applications. With its exceptional electrical properties, mechanical stability, and cost-effective manufacturing, it stands out as a reliable solution for engineers and designers alike.
Elevate your electronic designs with our advanced RO3006 PCBs, engineered for exceptional performance and reliability in demanding applications. Contact us today to learn more or to place an order!
