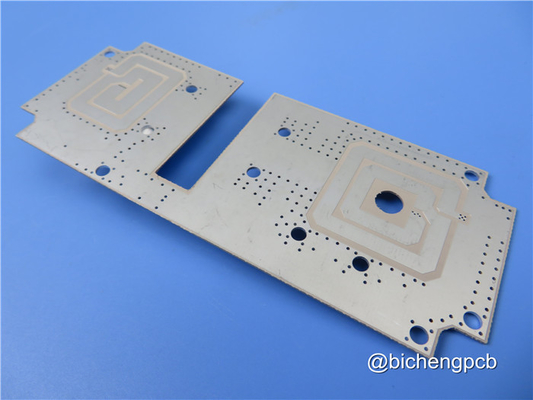

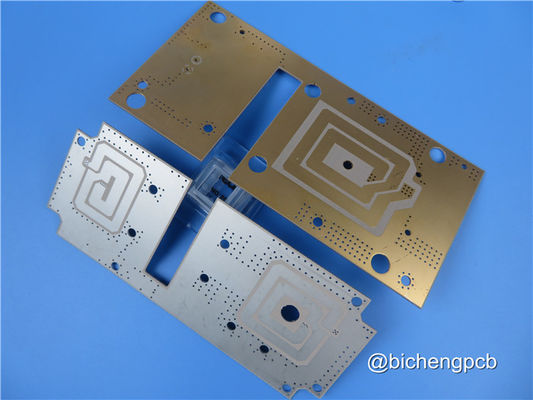

Introducing the RF-45 PCB, a high-performance solution designed specifically for high-frequency applications. With its advanced material composition and exceptional construction, this PCB offers outstanding performance and reliability. Whether you're working on satellite radio, RFID, or GPS antennas, the RF-45 PCB is the perfect choice. Read on to discover the key features and specifications that make the RF-45 PCB stand out.


The RF-45 PCB is crafted using glass-reinforced PTFE ceramic composites, ensuring superior performance in high-frequency environments. With a dielectric constant (Dk) of 4.5 at 10 GHz and a low dissipation factor of 0.0037 at 10 GHz/23°C, this PCB delivers excellent signal transmission and minimal signal loss. Its stable Dk and low loss properties over frequency variations guarantee consistent and reliable performance.


The RF-45 PCB can withstand a wide temperature range of -40℃ to +85℃, making it suitable for various operating conditions. Its DK remains flat over temperature changes, ensuring consistent performance even in extreme environments.


The RF-45 PCB features a 2-layer rigid construction for simplicity and ease of integration. The board dimensions of 62.1mm x 23.6mm provide ample space for your designs, with a tolerance of +/- 0.15mm for precise manufacturing. The copper layers on both sides are 35 μm thick, ensuring efficient signal conductivity. The Taconic Core RF-45, with a thickness of 1.575 mm (62mil), provides excellent mechanical strength and stability.


The RF-45 PCB adheres to IPC-Class-2 standards, guaranteeing high-quality manufacturing and compliance with industry specifications. Each PCB undergoes a rigorous 100% electrical test before shipment, ensuring reliable performance in your applications.


The RF-45 PCB finds its ideal applications in satellite radio, RFID, and GPS antennas. It empowers communication systems in satellite technology, revolutionizes identification and tracking systems with RFID, and enhances GPS antenna performance.


The RF-45 PCB is available worldwide, ensuring seamless integration for customers across the globe. For any technical inquiries or questions, please contact Ivy at


Property Test Method Unit Value
Material / / RF-45
Dielectric Constant IPC-TM-650 / 4.5
Dissipation Factor @ 10GHz IPC-TM-650 / 0.0037
Moisture Absorption IPC-TM-650 % 0.04
Flexural Strength (MD) ASTM D790 psi 20700
Flexural STRENGTH (CD) ASTM D790 psi 19300
Peel Strength (1 oz VLP) IPC-TM-650 2.4.8 (Thermal Stress) lbs/linear inch 10
Thermal Conductivity ASTM F 433 W/m/K 0.33
Volume Resistivity IPC-TM-650 Mohm/cm 1.4 x 108
Surface Resistivity IPC-TM-650. Mohm 3.3 x 106
CTE (x) IPC-TM-650-2.4.41 (>RT -125) ppm/ 9
CTE (y) IPC-TM-650-2.4.41 (>RT -125) ppm/ 13
CTE (z) IPC-TM-650-2.4.41 (>RT -125) ppm/ 96
Flammability Rating UL94 / V-0
