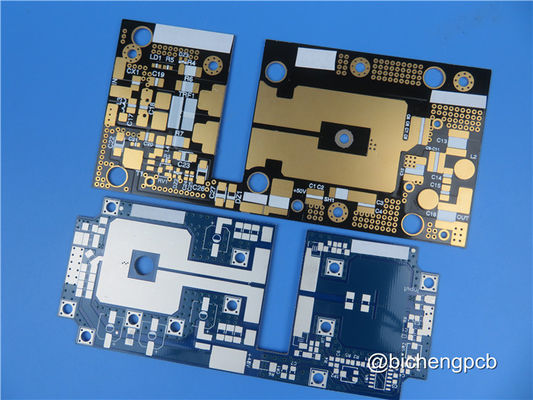

0.9mm Rigid PCB,
HASL Lead Free Rigid PCB,
Satellite Radio PCB Board
Introducing the TRF-45 PCB, a cutting-edge solution that combines superior performance and exceptional reliability. Engineered with glass-reinforced PTFE ceramic composites, this 2-layer rigid PCB is provided to meet the demands of high-frequency applications, making it an ideal choice for industries such as satellite radio and RFID.
TRF-45 PCB Material:
The TRF-45 PCB is crafted from glass reinforced PTFE ceramic composites, ensuring outstanding electrical properties and thermal conductivity. With a dielectric constant (Dk) of 4.5 at 10 GHz and a dissipation factor of 0.0035 at 10 GHz/23°C, it guarantees low loss and stable signal transmission. Moreover, its X, Y, and Z coefficients of thermal expansion (CTE) of 9 ppm/°C, 9 ppm/°C, and 40 ppm/°C respectively, provide excellent dimensional stability over a wide temperature range from -40℃ to +85℃.
|Dielectric Constant @ 10GHz||IPC-TM-650 188.8.131.52.1(m)||/||4.5|
|Dissipation Factor @ 10GHz||IPC-TM-650 184.108.40.206.1(m)||/||0.0035|
|Moisture Absorption||IPC-TM-650 220.127.116.11||%||≤0.06|
|Flexural Strength (Lengthwise)||IPC-TM-618.104.22.168||lbs / in (N/mm2)||17000 (177)|
|Flexural Strength (Transverse)||IPC-TM-650 2.4.4||lbs / in (N/mm2)||15000 (103)|
|Peel Strength||IPC-TM-650 2.4.8 (Thermal Stress)||lbs / in (N/mm)||>8 (>1.4)|
|Thermal Conductivity||ASTM F 433||W/m/K||0.43|
|Volume Resistivity||IPC-TM-650 22.214.171.124||Mohm/cm||8.0 x 107|
|Surface Resistivity||IPC-TM-6126.96.36.199.1||Mohm||3.0 x 107|
|CTE (x)||ASTM D 3386 (TMA)||ppm/℃||9|
|CTE (y)||ASTM D 3386 (TMA)||ppm/℃||9|
|CTE (z)||ASTM D 3386 (TMA)||ppm/℃||40|
The TRF-45 PCB offers a range of benefits that set it apart from conventional PCBs. Its low loss properties ensure minimal signal attenuation, enabling high-fidelity signal transmission. The high thermal conductivity of the material facilitates efficient heat dissipation, enhancing the reliability and lifespan of electronic components. Additionally, the TRF-45 PCB maintains stable Dk values over temperature and frequency variations, ensuring consistent performance. With its very low z-axis CTE, it minimizes the risk of stress-induced failures and ensures long-term reliability.
The TRF-45 PCB features a 2-layer rigid construction, with 35 μm copper layers on both sides. The Taconic Core TRF-45 provides a thickness of 0.813 mm (32mil), offering excellent mechanical strength and durability. The finished board dimensions are precisely manufactured at 65.53mm x 45.33mm, with a tolerance of +/- 0.15mm. The minimum trace/space is 6/8 mils, and the minimum hole size is 0.35mm. The board is meticulously tested using a 100% electrical test prior to shipment, ensuring its quality and performance.
The TRF-45 PCB is well-suited for a variety of applications, particularly in the satellite radio and RFID industries. Its superior performance characteristics make it an ideal choice for high-frequency communication systems, ensuring reliable and efficient signal transmission in demanding environments.
Quality Assurance and Availability:
The TRF-45 PCB conforms to IPC-Class-2 standards, guaranteeing high-quality manufacturing and adherence to industry specifications. It is available worldwide, offering accessibility to customers across the globe. For any technical inquiries or further information, please reach out to Ivy at firstname.lastname@example.org.
Choose the TRF-45 PCB and unlock the potential of your high-frequency applications with its exceptional performance, reliability, and global availability. Experience the difference that advanced PCB technology can make in your electronic designs.
Unleashing the Power of TRF-45 PCB: Revolutionizing High-Frequency Applications
In the fast-paced world of high-frequency applications, having a reliable and high-performance PCB is crucial. Enter the TRF-45 PCB, a game-changing solution that combines advanced materials and exceptional design to deliver unparalleled performance. Designed with glass-reinforced PTFE ceramic composites, the TRF-45 PCB offers a host of benefits that make it an ideal choice for cutting-edge applications.
One of the standout features of the TRF-45 PCBis its low loss properties, which ensure minimal signal attenuation and high-fidelity signal transmission. This is crucial in high-frequency communication systems where maintaining signal integrity is paramount. Additionally, the TRF-45 PCB boasts high thermal conductivity, facilitating efficient heat dissipation and enhancing the reliability and lifespan of electronic components.
Stability is another key attribute of the TRF-45 PCB. Its dielectric constant (Dk) remains consistent over a wide range of temperatures and frequencies, ensuring reliable performance in varying operating conditions. Furthermore, the TRF-45 PCB exhibits very low z-axis coefficient of thermal expansion (CTE), minimizing the risk of stress-induced failures and ensuring long-term reliability.
When it comes to construction, the TRF-45 PCB features a 2-layer rigid board with 35 μm copper layers on both sides. The Taconic Core TRF-45, with a thickness of 0.813 mm (32mil), provides excellent mechanical strength and durability. Precise board dimensions of 65.53mm x 45.33mm, with a tolerance of +/- 0.15mm, guarantee consistency and accuracy in manufacturing. The board undergoes a rigorous 100% electrical test prior to shipment, ensuring its quality and performance.
The TRF-45 PCB finds its applications in various industries, particularly in satellite radio and RFID. In satellite radio, where communication in the vastness of space is critical, the TRF-45 PCB empowers reliable and efficient signal transmission. In the realm of RFID, the TRF-45 PCB revolutionizes identification and tracking systems, enabling seamless and accurate data transfer.
Adhering to IPC-Class-2 standards, the TRF-45 PCB undergoes stringent quality assurance processes to ensure high-quality manufacturing and compliance with industry specifications. Furthermore, it is available worldwide, offering global accessibility to customers across the globe.
In conclusion, the TRF-45 PCB is a cutting-edge solution that unleashes the power of high-frequency applications. With its exceptional performance, reliability, and global availability, it empowers designers and engineers to push the boundaries of innovation. Embrace the future of high-frequency designs with the TRF-45 PCB and unlock the true potential of your electronic applications.
