Rogers DiClad 870 Woven Fiberglass Microwave PCB 125mil Reinforced PTFE Based

MOQ:	1PCS
Price:	USD9.99-99.99
Standard Packaging:	Vacuum bags+Cartons
Delivery Period:	8-9 working days
Payment Method:	T/T
Supply Capacity:	5000PCS per month

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Bicheng

Certification

UL, ISO9001, IATF16949

Model Number

BIC-211.V1.0

PCB Material:

Woven Fiberglass Reinforced PTFE Laminates

Dielectric Constant:

Layer Count:

Sinlge-sided PCB, Double-sided PCB, Multi-layer PCB, Hybrid PCB

Dielectric Thickness:

31mil(0.787mm), 93mil (2.286mm), 125mil (3.175mm)

Copper Weight:

1oz (35µm), 2oz (70µm)

Surface Finish:

Immersion Gold, HASL, Immersion Silver, Immersion Tin, Bare Copper, OSP, Pure Gold Plated Etc..

Highlight:

Woven Fiberglass Microwave PCB

PTFE Based Microwave PCB

125mil Rogers PCB Board

Product Description

Rogers DiClad 870 Woven Fiberglass Reinforced PTFE-based 31mil 93mil 125mil Microwave PCB

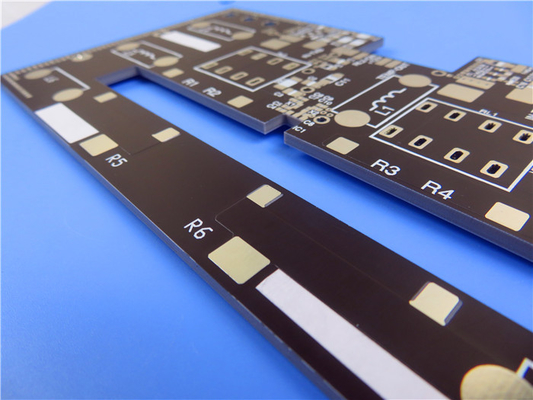

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)

General Description

DiClad 870 laminates are woven fiberglass/PTFE composite materials for use as printed circuit board substrates. In comparison to nonwoven fiberglass reinforced PTFE-based laminates of comparable dielectric constants, the woven fiberglass reinforcement in DiClad 870 provides greater dimensional stability.

DiClad 870 laminates offer lower dielectric constants (Dk) and dissipation factors at a similar thickness as other laminates in the DiClad series by using fewer plies of woven fiberglass and a higher ratio of PTFE content.

Features & Benefits

1. Dielectric constant of 2.33 at 10GHz and 1 MHz

2. Dissipation factor of .0013 at 10GHz

3. Lowest moisture absorption among PTFE based composites

4. Stable Dk over a wide frequency range ensuring easy design transition and scalability of design

5. Low Dk supports wider line widths for lower insertion loss

6. Copper matched CTE in X and Y axis

7. Excellent outgassing value in TML, CVCM and WVR.

8. Meets requirements of UL94-V0

Our PCB Capability (DiClad 870)

PCB Capability (DiClad 870)
PCB material:	Woven Fiberglass reinforced PTFE Laminates
Designation:	DiClad 870
Dielectric constant:	2.3
Layer count:	Sinlge-sided PCB, Double-sided PCB, Multi-layer PCB, Hybrid PCB
Dielectric thickness:	31mil(0.787mm), 93mil (2.286mm), 125mil (3.175mm)
Copper weight:	1oz (35µm), 2oz (70µm)
Copper weight:	1oz (35µm), 2oz (70µm)
PCB size:	≤400mm X 500mm
Solder mask:	Green, Black, Blue, Red, Yellow etc.
Surface finish:	Immersion gold, HASL, Immersion silver, Immersion tin, Bare copper, OSP, Pure gold plated etc..

Rogers DiClad 870 Woven Fiberglass Microwave PCB 125mil Reinforced PTFE Based 0

Typical Applications

1. Commercial Phased Array Networks

2. Digital Radio Antennas

3. Filters, Couplers, LNAs

4. Guidance Systems

5. Low Loss Base Station Antennas

6. Radar Feed Networks

Rogers DiClad 870 Woven Fiberglass Microwave PCB 125mil Reinforced PTFE Based 1

Our Advantages

1. Wide ranges of high frequency materials: Rogers, Taconic, Wangling, Isola, Shengyi etc.

2. 16000㎡ workshop; 30000㎡ output capability per month; 8000 types of PCB's per month;

3. ISO9001, ISO14001, ISO13485, UL certified manufacturing factory;

4. Quick CADCAM checking and free PCB quotation;

5. More than 20+ years of high frequency PCB experience;

6. Diversified shipping method: FedEx, DHL, TNT, EMS;

7. No MOQ, low cost for prototypes and small runs quantity;

8. Delivery on time: >98% ; Customer complaint rate: <1%

Appendix: Data sheet of DiClad 870

Property	DiClad 870	Condition	Test Method
Electrical Properties
Dielectric Constant @ 10 GHz	2.33	C23/50	IPC TM-650 2.5.5.5
Dielectric Constant @ 1 MHz	2.33	C23/50	IPC TM-650 2.5.5.3
Dissipation Factor @ 10 GHz	0.0013	C23/50	IPC TM-650 2.5.5.5
Dissipation Factor @ 1 MHz	0.0009	C23/50	IPC TM-650 2.5.5.3
Thermal Coefficient of Er (ppm/°C)	-161	-10°C to +140°C	IPC TM-650 2.5.5.5 Adapted
Volume Resistivity (MΩ-cm)	1.5 x 10 ⁹	C96/35/90	IPC TM-650 2.5.17.1
Surface Resistivity (MΩ)	3.4 x 10⁷	C96/35/90	IPC TM-650 2.5.17.1
Arc Resistance	>180	D48/50	ASTM D-495
Dielectric Breakdown (kV)	>45	D48/50	ASTM D-149
Mechanical Properties
Peel Strength (lbs.per inch)	14	After Thermal Stress	IPC TM-650 2.4.8
Tensile Modulus (kpsi)	485(MD), 346(CD)	A, 23°C	ASTM D-638
Tensile Strength (kpsi)	14.9(MD), 11.2 (CD)	A, 23°C	ASTM D-882
Compressive Modulus (kpsi)	327	A, 23°C	ASTM D-695
Flexural Modulus (kpsi)	437	A, 23°C	ASTM D-790
Thermal Properties
Coefficient of Thermal Expansion (ppm/°C) X Axis Y Axis Z Axis	17 29 217	0°C to 100°C	IPC TM-650 2.4.24 Mettler 3000 Thermomechanical Analyzer
Thermal Conductivity (W/mK)	0.257	100°C	ASTM E-1225
Flammability UL	Meets requirements of UL94-V0	C48/23/50, E24/125	UL 94 Vertical Burn IPC TM-650 2.3.10
Physical Properties
Density (g/cm³)	2.26	A, 23°C	ASTM D-792 Method A
Water Absorption (%)	0.02	E1/105 + D24/23	MIL-S-13949H 3.7.7 IPC TM-650 2.6.2.2
Outgassing Total Mass Loss (%) Collected Volatile Condensable Material (%) Water Vapor Regain (%) Visible Condensate (±)	0.02 0.00 0.01 NO	125°C, ≤ 10^-6 torr	NASA SP-R-0022A Maximum 1.00% Maximum 0.10%
