RO4533 Antenna Rogers PCB Board 60mil Double Layer Immersion Gold Circuit Board

MOQ:	1PCS
Standard Packaging:	Vacuum bags+Cartons
Delivery Period:	8-9 working days
Payment Method:	T/T
Supply Capacity:	5000PCS per month

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Bicheng

Certification

UL, ISO9001, IATF16949

Model Number

BIC-186.V1.0

Base Material:

Rogers RO4533 1.524mm

Layer Count:

2 Layers

PCB Thickness:

1.6 Mm ±0.16

PCB Size:

55 X 92mm=1up

Copper Weight:

Surface Finish:

Immersion Gold

Highlight:

60mil Rogers PCB Board

1.6mm Immersion Gold Circuit Board

Double Layer Rogers PCB Board

Product Description

RO4533 Antenna High Frequency PCB 60mil Rogers 4533 Double Layer Immersion Gold Circuit Board

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)

General Description

This is a type of double sided high frequency PCB built on Rogers RO4533, a type of cost performance and antenna grade laminates. It is on 60mil(1.524mm) core with 1oz copper finished, no solder mask on both sides. Immersion gold is on top layer and bottom layer with vias. The boards are fabricated per IPC 6012 Class 2 using supplied Gerber data. Every 25 boards are packed for shipment.

PCB Specifications

PCB SIZE	55 x 92mm=1up
BOARD TYPE	Double sided PCB
Number of Layers	2 layers
Surface Mount Components	YES
Through Hole Components	NO
LAYER STACKUP	copper ------- 17um(0.5 oz)+plate TOP layer
	Rogers RO4533 1.524mm
	copper ------- 17um(0.5 oz) + plate BOT Layer
TECHNOLOGY
Minimum Trace and Space:	10 mil / 10 mil
Minimum / Maximum Holes:	0.3 mm / 4.0 mm
Number of Different Holes:	3
Number of Drill Holes:	159
Number of Milled Slots:	1
Number of Internal Cutouts:	2
Impedance Control:	no
Number of Gold finger:	0
BOARD MATERIAL
Glass Epoxy:	Rogers RO4533 1.524mm
Final foil external:	1.0 oz
Final foil internal:	N/A
Final height of PCB:	1.6 mm ±0.16
PLATING AND COATING
Surface Finish	Immersion Gold, 91%
Solder Mask Apply To:	N/A
Solder Mask Color:	N/A
Solder Mask Type:	N/A
CONTOUR/CUTTING	Routing
MARKING
Side of Component Legend	N/A
Colour of Component Legend	N/A
Manufacturer Name or Logo:	N/A
VIA	Plated through hole(PTH), minimum size 0.3mm.
FLAMIBILITY RATING	94V-0
DIMENSION TOLERANCE
Outline dimension:	0.0059"
Board plating:	0.0029"
Drill tolerance:	0.002"
TEST	100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED	email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.

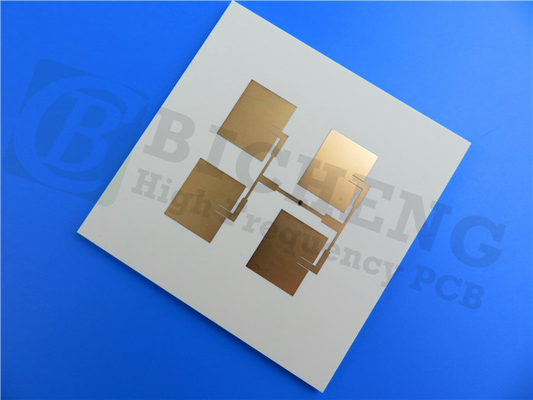

RO4533 Antenna Rogers PCB Board 60mil Double Layer Immersion Gold Circuit Board 0

Typical Applications:

1. Cellular infrastructure base station antennas

2. WiMAX antenna networks

Our Advantages

1.ISO9001, ISO14001, IATF16949, ISO13485, UL Certified;

2.More than 18+ years’ high frequency PCB experience;

3.Small quantity order is available, no MOQ required;

4.We’re a Team of passion, discipline, responsibility and honesty;

5.Delivery on time: >98%, Customer complaint rate: <1%

6.16000㎡ workshop, 30000㎡ output a month and 8000 types of PCB's a month;

7.Powerful PCB capabilities support your research and development, sales and marketing;

8.IPC Class 2 / IPC Class 3

Typical Values (RO4533, RO4534, RO4535)

Property	Typical Values			Direction	Units	Condition	Test Method
Property	RO4533	RO4534	RO4535	Direction	Units	Condition	Test Method
Dielectric Constant, er Process	3.3 ± 0.08	3.4 ± 0.08	3.44 ± 0.08	Z	-	10 GHz/23℃ 2.5 GHz	IPC-TM-650,2.5.5.5
Dissipation Factor	0.002	0.0022	0.0032	Z	-	2.5 GHz/23℃	IPC-TM-650, 2.5.5.5
Dissipation Factor	0.0025	0.0027	0.0037	Z	-	10 GHz/23℃	IPC-TM-650, 2.5.5.5
PIM (Typical)	-157	-157	-157	-	dBc	Reflected 43 dBm swept tones	Summitek 1900b PIM Analyzer
Dielectric Strength	>500	>500	>500	Z	V/mil	0.51 mm	IPC-TM-650, 2.5.6.2
Dimensional Stability	<0.2	<0.3	<0.5	X,Y	mm/m (mils/inch)	after etch	IPC-TM-650, 2.4.39A
Coefficient of Thermal Expansion	13	11	16	X	ppm/℃	-55 to 288℃	IPC-TM-650, 2.4.41
	11	14	17	Y
	37	46	50	Z
Thermal Conductivity	0.6	0.6	0.6	-	W/(m.K)	80℃	ASTM C518
Moisture Absorption	0.02	0.06	0.09	-	%	D48/50	IPC-TM-650, 2.6.2.1 ASTM D570
Tg	>280	>280	>280	-	℃ TMA	A	IPC-TM-650, 2.4.24.3
Density	1.8	1.8	1.9	-	gm/cm³	-	ASTM D792
Copper Peel Strength	6.9 (1.2)	6.3 (1.1)	5.1 (0.9)	-	lbs/in (N/mm)	1 oz. EDC post solder float	IPC-TM-650, 2.4.8
Flammability	NON FR	NON FR	V-0	-	-	-	UL 94
Lead-Free Process Compatible	Yes	Yes	Yes	-	-	-	-

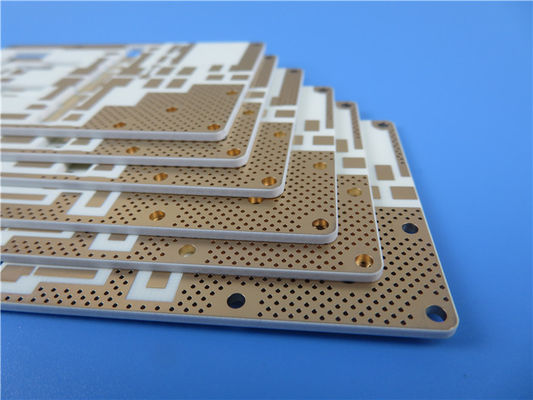

RO4533 Antenna Rogers PCB Board 60mil Double Layer Immersion Gold Circuit Board 1
