RT/Duroid 5870 Rogers PCB Board
  • name
  • name

RT/Duroid 5870 Rogers PCB Board

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-090.V1.0
Base Material:
RT/Duroid 5870
Layer Count:
1 Layer, 2 Layer, Multilayer, Hybrid Type (Mixed)
PCB Thickness:
10mil (0.254mm), 20mil (0.508mm), 31mil (0.787mm), 62mil (1.575mm)
PCB Size:
≤400mm X 500mm
Solder Mask:
Green, Black, Blue, Yellow, Red Etc.
Silkscreen:
White, Black, NO Silkscreen Etc
Copper Weight:
0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
Surface Finish:
Bare Copper, HASL, ENIG, Immersion Tin, OSP.
Highlight:

RT Duroid 5870 Rogers PCB Board

,

20mil Rogers PCB Board

Product Description



Rogers High Frequency PCB Made on RT/duroid 5870 with 10mil, 20mil, 31mil and 62mil Coating with Immersion Gold

(PCB's are custom-made products, the picture and parameters shown are just for reference)



Hello Everyone,

Today, we introduce high frequency PCB built on RT/duroid 5870 laminates.



RT/duroid 5870 is glass microfiber reinforced PTFE composite of Rogers Corporation, which is designed for exacting stripline and microstrip circuit applications.

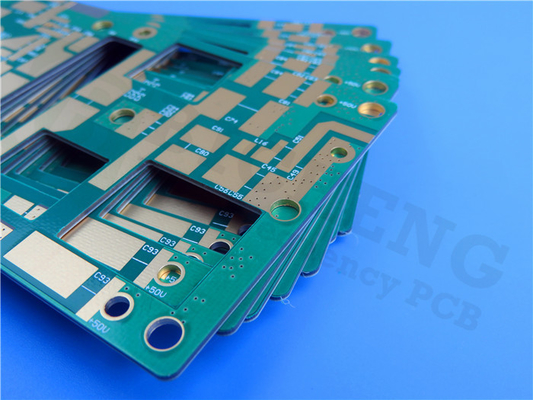

RT/Duroid 5870 Rogers PCB Board 0



Let's see the reasons for using RT/duroid 5870 material.



1) The randomly oriented microfibers result in exceptional dielectric constant uniformity.



2) The dielectric constant of RT/duroid 5870 laminates is uniform from panel to panel and is constant over a wide frequency range.



3) Its low dissipation factor extends the usefulness of RT/duroid 5870 laminates to Ku-band and above.



4) Designed for microstrip and stripline application



Our PCB Capability (RT/duroid 5870)

PCB Capability
PCB Material: Glass microfiber reinforced PTFE composites
Designator: RT/duroid 5870
Dielectric constant: 2.33 ±0.02 (process)
2.33 (design)
Layer count: 1 Layer, 2 Layer, Multilayer, Hybrid type (Mixed)
Copper weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
PCB thickness: 10mil (0.254mm), 20mil (0.508mm)
31mil (0.787mm), 62mil (1.575mm)
PCB size: ≤400mm X 500mm
Solder mask: Green, Black, Blue, Yellow, Red etc.
Surface finish: Bare copper, HASL, ENIG, Immersion tin, OSP.
　 　



RT/duroid 5870 is often used in double sided PCB, multilayer PCB and hybrid PCB.It's available in a variety of thicknesses for double sided PCB, such as 10mil, 20mil, 31mil and 62mil. Surface finishes are bare copper, HASL, ENIG, Immersion tine and OSP for option.



RT/Duroid 5870 Rogers PCB Board 1



The typical applications are

-microstrip and stripline circuits

-commercial airline broadband antenna

-radar systems

-millimeter wave applications

-point to point digital radio antenna etc.



The basic colour of RT/duroid 5870 PCB is black.



Appendix: Properties of RT/duroid 5870

RT/duroid 5870 Typical Value
Property RT/duroid 5870 Direction Units Condition Test Method
Dielectric Constant,εProcess 2.33
2.33±0.02 spec.		 Z N/A C24/23/50
C24/23/50		 1 MHz IPC-TM-650 2.5.5.3
10 GHz IPC-TM 2.5.5.5
Dielectric Constant,εDesign 2.33 Z N/A 8GHz to 40 GHz Differential Phase Length Method
Dissipation Factor,tanδ 0.0005
0.0012		 Z N/A C24/23/50
C24/23/50		 1 MHz IPC-TM-650 2.5.5.3
10 GHz IPC-TM 2.5.5.5
Thermal Coefficient of ε -115 Z ppm/℃ -50℃to 150℃ IPC-TM-650 2.5.5.5
Volume Resistivity 2 x 107 Z Mohm cm C/96/35/90 ASTM D 257
Surface Resistivity 3 x 107 Z Mohm C/96/35/90 ASTM D 257
Specific Heat 0.96(0.23) N/A j/g/k
(cal/g/c)		 N/A Calculated
Tensile Modulus Test at 23℃ Test at 100℃ N/A MPa(kpsi) A ASTM D 638
1300(189) 490(71) X
1280(185) 430(63) Y
Ultimate Stress 50(7.3) 34(4.8) X
42(6.1) 34(4.8) Y
Ultimate Strain 9.8 8.7 X %
9.8 8.6 Y
Compressive Modulus 1210(176) 680(99) X MPa(kpsi) A ASTM D 695
1360(198) 860(125) Y
803(120) 520(76) Z
Ultimate Stress 30(4.4) 23(3.4) X
37(5.3) 25(3.7) Y
54(7.8) 37(5.3) Z
Ultimate Strain 4 4.3 X %
3.3 3.3 Y
8.7 8.5 Z
Moisture Absorption 0.02 N/A % 0.62"(1.6mm) D48/50 ASTM D 570
Thermal Conductivity 0.22 Z W/m/k 80℃ ASTM C 518
Coefficient of Thermal Expansion 22
28
173		 X
Y
Z		 ppm/℃ 0-100℃ IPC-TM-650 2.4.41
Td 500 N/A ℃ TGA N/A ASTM D 3850
Density 2.2 N/A gm/cm3 N/A ASTM D 792
Copper Peel 27.2(4.8) N/A Pli(N/mm) 1oz(35mm)EDC foil
after solder float		 IPC-TM-650 2.4.8
Flammability V-0 N/A N/A N/A UL 94
Lead-free Process Compatible Yes N/A N/A N/A N/A



RT/Duroid 5870 Rogers PCB Board 2



We specialize in providing you with prototype, small batches and mass production service.



If you have any questions, please feel free to contact us.



Thank you for your reading.
