PTFE High Frequency PCB With 0.5mm Thick With Immersion Gold
  • name
  • name
  • name

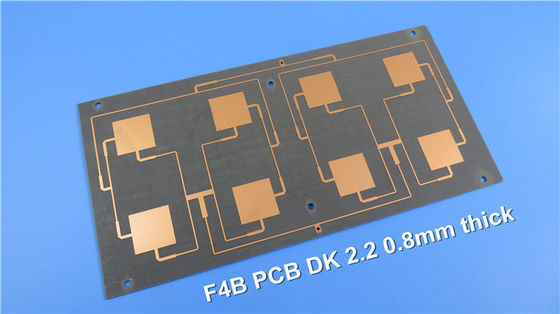

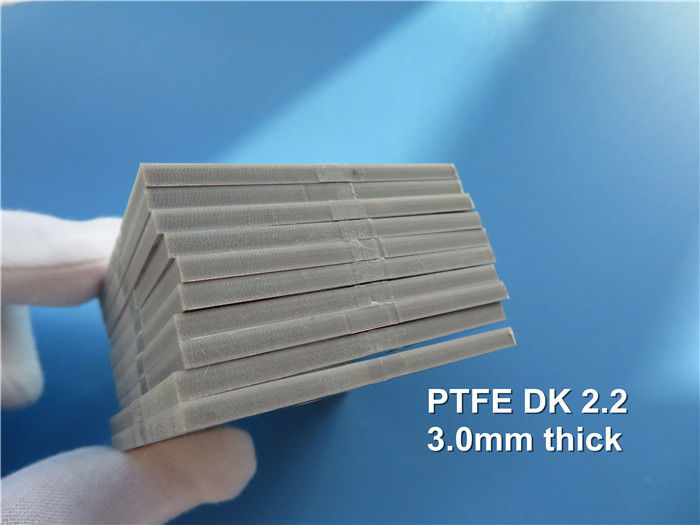

PTFE High Frequency PCB With 0.5mm Thick With Immersion Gold

MOQ: 1PCS
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-088.V1.0
Base Material:
PTFE
Layer Count:
2 Layer, Multilayer, Hybrid Type
PCB Thickness:
0.17mm, 0.25mm, 0.5mm, 0.8mm, 1.0mm, 1.5mm, 2.0mm, 3.0mm, 4.0mm And 5.0mm, Etc.
PCB Size:
≤400mm X 500mm
Solder Mask:
Green, Black, No Colour Etc.
Silkscreen:
White, Black, NO Silkscreen Etc
Copper Weight:
0.5oz, 1oz, 2oz
Surface Finish:
Bare Copper, HASL, ENIG Etc.
Highlight:

PTFE Teflon High Frequency PCB

,

0.5mm Thick High Frequency PCB

,

Immersion Gold High Frequency PCB

Product Description



High Frequency PCB Built on PTFE (Teflon) with 0.5mm, 0.8mm, 1.0mm, 1.5mm, 2.0mm, 3.0mm thick with Immersion Gold, Silver, Tin and OSP

(PCB's are custom-made products, the picture and parameters shown are just for reference)



Hello everybody,

Today we talk about F4B (PTFE) high frequency circuit board.



F4B is a series of PTFE based high frequency materials which is brand of China. It has advantages on price and quality in the application of navigation, radar, satellite communication, 4G communications, 5G communications and the like.



The common dielectric constant available are 2.2, 2.55 and 2.65, other value of dielectric constants are 2.17, 2.45, 2.75 and 3.0 etc; Copper weight available are 0.5oz, 1oz and 2oz and 3oz; the thickness of board ranges from 0.17mm to 5.0mm.



PCB Capability
PCB material: PTFE
Designator: F4B series
Dielectric constant: 2.2, 2.55 and 2.65
　 2.17, 2.45, 2.75 and 3.0
Layer count: 2 Layer, Multilayer, Hybrid type
Copper weight: 0.5oz, 1oz, 2oz
PCB thickness: 0.17mm, 0.25mm, 0.5mm, 0.8mm, 1.0mm,
1.5mm, 2.0mm, 3.0mm, 4.0mm and 5.0mm, etc.
PCB Size: ≤400mm X 500mm
Solder mask: Green, Black, No colour etc..
Surface finish: Bare copper, HASL, ENIG etc.



We can provide you with single sided board, double sided board, multilayer board and hybrid circuit board with FR-4.



The common color of solder mask is green, black and no color used.



The surface finish usually used is bare copper (no finish), HASL and immersion gold.



PTFE High Frequency PCB With 0.5mm Thick With Immersion Gold 0



The basic color of F4B PCB is brown.



Electrical properties of F4B PTFE

Name Test condition Unit Value
Density Normal state g/ cm3 2.1～2.35
Moisture Absorption Dip in the distilled water of 20±2℃ for 24 hours % ≤0.02
Operating Temperature High-low temperature chamber ℃ -50℃～+260℃
Thermal Conductivity   W/m/k 0.8

CTE

(typical)

0～100℃

(εr :2.1~2.3)

 ppm/℃ 25(x)
34(y)
252(z)

CTE

(typical)

0～100℃

(εr :2.3~2.9)

 ppm/℃ 14(x)
21(y)
173(z)

CTE

(typical)

0～100℃

(εr :2.9~3.5)

 ppm/℃ 12(x)
15(y)
95(z)
Shrinkage Factor 2 hours in boiling water % 0.0002
Surface Resistivity

500V

DC

 Normal state M·Ω ≥1×104
Constant humidity and temperature ≥1×103
Volume Resistivity Normal state MΩ.cm ≥1×106
Constant humidity and temperature ≥1×105
Pin Resistance 500V DC Normal state MΩ ≥1×105
Constant humidity and temperature ≥1×103
Surface dielectric strength Normal state d=1mm(Kv/mm) ≥1.2
Constant humidity and temperature ≥1.1
Dielectric Constant 10GHZ εr

2.20,2.55,2.65,3.0,3.5

(±2%)
Dissipation Factor 10GHZ tgδ 2.2 ≤7×10-4
2.55~2.65 ≤1×10-3
3.0~3.5 ≤1.5×10-3



Besides F4B PCB, we also supply high frequency circuit boards based on Rogers material, taconic material and Arlon etc. For example the list below:

Rogers RO4350B, RO4003C, RO3003, RO3006, RO3010, RO3210 etc.
Rogers RT/duroid 5880, RT/duroid 5870, RT/duroid 6002, RT/duroid 6010;
Taconic TLX-8, TLY-5, RF-35TC, TLF-35 etc.

Arlon AD450, AD600 etc.



PTFE High Frequency PCB With 0.5mm Thick With Immersion Gold 1



You’re welcome to contact us for your enquiry. Thank you for your reading.
