Rogers PCB RO3210 25mil DK10.2 Automotive Circuit Board

MOQ:	1PCS
Price:	USD9.99-99.99
Standard Packaging:	Vacuum bags+Cartons
Delivery Period:	8-9 working days
Payment Method:	T/T
Supply Capacity:	5000PCS per month

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Bicheng

Certification

UL, ISO9001, IATF16949

Model Number

BIC-056.V1.0

Base Material:

RO3210

Layer Count:

2 Layers

PCB Thickness:

0.8mm

PCB Size:

35 X 77 Mm=2 Designs = 2PCS

Solder Mask:

Green

Silkscreen:

White

Copper Weight:

0.5oz

Surface Finish:

Immersion Gold

Highlight:

RO3210 Automotive Circuit Board

DK10.2 Automotive Circuit Board

RO3210 Car Circuit Board

Product Description

Rogers RO3210 high frequency circuit materials are ceramic-filled laminates reinforced with woven fiberglass. These materials are engineered to offer exceptional electrical performance and mechanical stability. RO3210 laminates combine the surface smoothness of a non-woven PTFE laminate. Since these materials can be fabricated into PCB using standard PTFE circuit board processing techniques, it results in the mass production and get competitive price on the market. The dielectric constant of RO3210 substrate is 10.2 with a dissipation factor of 0.0027.

Typical applications:

1. Automotive collision avoidance systems

2. Automotive global positions satellite antennas

3. Datalink on cable systems

4. LMDS and wireless broadband

5. Remote meter readers

PCB Specifications

PCB SIZE	35 x 77 mm=2 designs = 2PCS
BOARD TYPE	Double sided PCB
Number of Layers	2 layers
Surface Mount Components	YES
Through Hole Components	NO
LAYER STACKUP	copper ------- 18um(0.5 oz)+plate TOP layer
	RO3210 0.635mm
	copper ------- 18um(0.5 oz)+plate BOT layer
TECHNOLOGY
Minimum Trace and Space:	6 mil / 6 mil
Minimum / Maximum Holes:	0.3 mm / 5.6 mm
Number of Different Holes:	2
Number of Drill Holes:	182
Number of Milled Slots:	0
Number of Internal Cutouts:	0
Impedance Control:	no
Number of Gold finger:	0
BOARD MATERIAL
Glass Epoxy:	RO3210 0.635mm
Final foil external:	1 oz
Final foil internal:	1 oz
Final height of PCB:	0.8 mm ±0.08
PLATING AND COATING
Surface Finish	Immersion gold (23.3% ) 0.05µm over 3µm nickel
Solder Mask Apply To:	TOP and Bottom, 12micron Minimum
Solder Mask Color:	Green, PSR-2000GT600D, Taiyo Supplied.
Solder Mask Type:	LPSM
CONTOUR/CUTTING	Routing, v-cut
MARKING
Side of Component Legend	TOP and Bottom.
Colour of Component Legend	White, IJR-4000 MW300, Taiyo brand
Manufacturer Name or Logo:	Marked on the board in a conductor and leged FREE AREA
VIA	Plated through hole(PTH), minimum size 0.3mm.
FLAMIBILITY RATING	UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension:	0.0059"
Board plating:	0.0029"
Drill tolerance:	0.002"
TEST	100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED	email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.

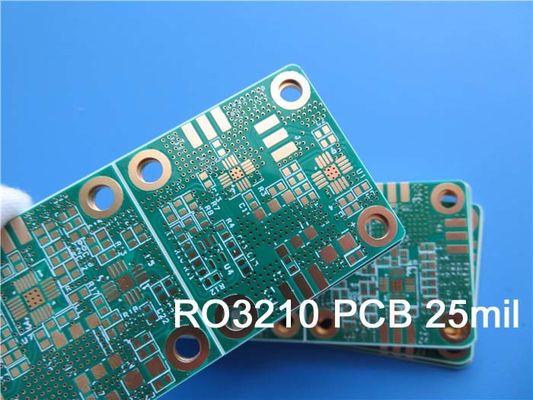

Rogers PCB RO3210 25mil DK10.2 Automotive Circuit Board 0

Data Sheet of Rogers 3210 (RO3210)

RO3210 Typical Value
Property	RO3210	Direction	Units	Condition	Test Method
Dielectric Constant,εProcess	10.2±0.5	Z		10 GHz 23℃	IPC-TM-650 2.5.5.5 Clamped Stripline
Dielectric Constant,εDesign	10.8	Z		8GHz to 40 GHz	Differential Phase Length Method
Dissipation Factor,tanδ	0.0027	Z		10 GHz 23℃	IPC-TM-650 2.5.5.5
Thermal Coefficient of ε	-459	Z	ppm/℃	10 GHz 0℃to 100℃	IPC-TM-650 2.5.5.5
Dimensional Stability	0.8	X, Y	mm/m	COND A	ASTM D257
Volume Resistivity	103		MΩ.cm	COND A	IPC 2.5.17.1
Surface Resistivity	103		MΩ	COND A	IPC 2.5.17.1
Tensile Modulus	579 517	MD CMD	kpsi	23℃	ASTM D 638
Water Absorption	＜0.1	-	%	D24/23	IPC-TM-650 2.6.2.1
Specific Heat	0.79		j/g/k		Calculated
Thermal Conductivity	0.81		W/M/K	80℃	ASTM C518
Coefficient of Thermal Expansion (-55 to 288℃)	13 34	X,Y Z	ppm/℃	23℃/50% RH	IPC-TM-650 2.4.4.1
Td	500		℃	TGA	ASTM D3850
Density	3		gm/cm³
Copper Peel Stength	11		pli	1oz,EDC After Solder Float	IPC-TM 2.4.8
Flammability	V-0				UL 94
Lead-free Process Compatible	Yes
