RT/Duroid 6002 120mil 3.048mm Double Sided DK2.94 Rogers PCB Board

RT/Duroid 6002 120mil 3.048mm Double Sided DK2.94 Rogers PCB Board
RT/Duroid 6002 120mil 3.048mm Double Sided DK2.94 Rogers PCB Board RT/Duroid 6002 120mil 3.048mm Double Sided DK2.94 Rogers PCB Board

Large Image :  RT/Duroid 6002 120mil 3.048mm Double Sided DK2.94 Rogers PCB Board

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-055.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: RT/Duroid 6002 Layer Count: 2 Layers
PCB Thickness: 3.1mm PCB Size: 95 X 79 Mm=1PCS
Solder Mask: Green Silkscreen: White
Copper Weight: 0.5oz Surface Finish: Immersion Gold
High Light:

RT Duroid 6002 Rogers PCB Board


DK2.94 Rogers PCB Board


RT Duroid 6002 Double Sided PCB

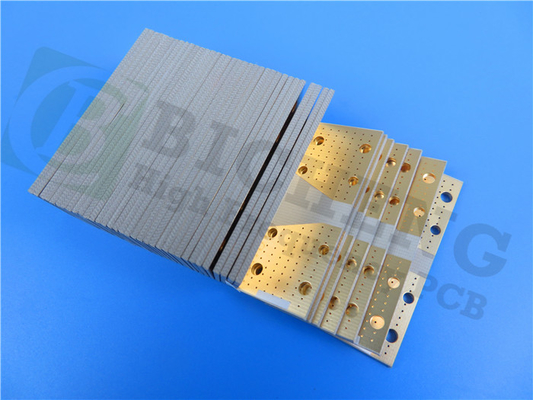

Rogers HF PCB Built on RT/Duroid 6002 120mil 3.048mm DK2.94 With Immersion Gold for Power Backplanes

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)


Rogers RT/duroid 6002 microwave material was the first low loss and low dielectric constant laminate to offer superior electrical and mechanical properties essential in designing complex microwave structures which are mechanically reliable and electrically stable.


The thermal coefficient of dielectric constant is extremely low from -55℃ to +150℃ which provides the designers of filters, oscillators and delay lines the electrical stability needed in today's demanding applications.


A low Z axis coefficient of thermal expansion(CTE) ensures excellent reliability of plated through holes. RT/duroid 6002 materials have been successfully temperature cycled (-55℃ TO 125℃) for over 5000 cycles without a single via failure.


Excellent dimensional stability (0.2 to 0.5 mils/inch) is achieved by matching the X and Y coefficient of expansion to copper. This often eliminates double etching to achieve tight positional tolerances.


The low tensile modulus (X,Y) greatly reduces the stress applied to solder joints and allows the expansion of the laminate to be constrained by a minimum amount of low CTE metal (6 ppm/℃) further increasing surface mount reliability.


Applications particularly suited to the unique properties of RT/duroid 6002 material include flat and non-planar structures such antennas, complex mutli-layer circuits with inter-layer connections, and microwave circuits for aerospace designs in hostile environments.


Typical applications:

1. Beam forming networks

2. Commercial airline collision avoidance

3. High reliability complex multi-layer circuits

4. Power backplanes


PCB Specifications

PCB SIZE 95 x 79 mm=1PCS
BOARD TYPE Double sided PCB
Number of Layers 2 layers
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 18um(0.5 oz)+plate TOP layer
RT/duroid 6002 3.048mm
copper ------- 18um(0.5 oz)+plate BOT layer
Minimum Trace and Space: 6 mil / 7 mil
Minimum / Maximum Holes: 0.4 mm / 5.6 mm
Number of Different Holes: 3
Number of Drill Holes: 325
Number of Milled Slots: 0
Number of Internal Cutouts: 1
Impedance Control: no
Number of Gold finger: 0
Glass Epoxy: RT/duroid 6002 3.048mm
Final foil external: 1 oz
Final foil internal: 1 oz
Final height of PCB: 3.1 mm ±0.3
Surface Finish Immersion gold (37.1% ) 0.05µm over 3µm nickel
Solder Mask Apply To: TOP and Bottom, 12micron Minimum
Solder Mask Color: Green, PSR-2000GT600D, Taiyo Supplied.
Solder Mask Type: LPSM
Side of Component Legend TOP and Bottom.
Colour of Component Legend White, IJR-4000 MW300, Taiyo brand
Manufacturer Name or Logo: Marked on the board in a conductor and leged FREE AREA
VIA Plated through hole(PTH), minimum size 0.3mm.
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.




Data Sheet of Rogers 6002 (RT/duroid 6002)

RT/duroid 6002 Typical Value
Property RT/duroid 6002 Direction Units Condition Test Method
Dielectric Constant,εProcess 2.94±0.04 Z   10 GHz/23 IPC-TM-650
Dielectric Constant,εDesign 2.94     8GHz to 40 GHz Differential Phase Length Method
Dissipation Factor,tanδ 0.0012 Z   10 GHz/23 IPC-TM-650
Thermal Coefficient of ε +12 Z ppm/ 10 GHz 0-100 IPC-TM-650
Volume Resistivity 106 Z A ASTM D 257
Surface Resistivity 107 Z Mohm A ASTM D 257
Tensile Modulus 828(120) X,Y MPa(kpsi) 23 ASTM D 638
Ultimate Stress 6.9(1.0) X,Y MPa(kpsi)
Ultimate Strain 7.3 X,Y %
Compressive Modulus 2482(360) Z MPa(kpsi)   ASTM D 638
Moisture Absorption 0.02   % D48/50 IPC-TM-650
ASTM D 570
Thermal Conductivity 0.6   W/m/k 80 ASTM C518
Coefficient of Thermal Expansion
(-55 to 288
ppm/ 23/50% RH IPC-TM-650 2.4.41
Td 500   TGA   ASTM D 3850
Density 2.1   gm/cm3   ASTM D 792
Specific Heat 0.93(0.22)   j/g/k
Copper Peel 8.9(1.6)   Ibs/in.(N/mm)   IPC-TM-650 2.4.8
Flammability V-0       UL 94
Lead-free Process Compatible Yes
