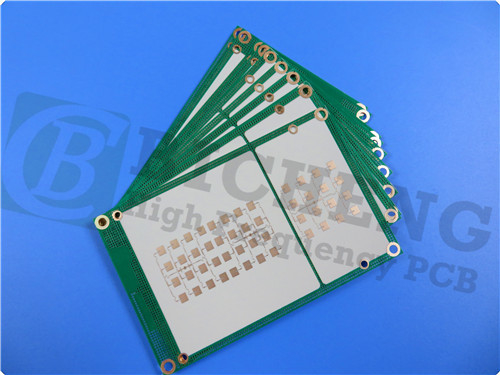

Rogers RO4350B PCBs Cost-Effective Choice For High Frequency Applications

Rogers RO4350B PCBs Cost-Effective Choice For High Frequency Applications
Rogers RO4350B PCBs Cost-Effective Choice For High Frequency Applications

Large Image :  Rogers RO4350B PCBs Cost-Effective Choice For High Frequency Applications

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99/PCS
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Material: Rogers RO4350B Core - 0.338 Mm (13.3mil) Layer Count: 2-layer
PCB Size: 40 Mm X 40 Mm=1PCS, +/- 0.15mm PCB Thickness: 0.5 Mm
Copper Weight: 1oz (1.4 Mils) Outer Layers Surface Finish: Immersion Gold
Highlight:

Cost Effective PCBs

,

High Frequency PCBs

,

RO4350B PCBs

In an era where high-frequency applications are increasingly vital, the demand for superior printed circuit boards (PCBs) has never been greater. The RO4350B PCB, crafted from advanced Rogers materials, represents a significant advancement in this field, offering exceptional performance and cost-effectiveness for engineers and designers alike.



Understanding Rogers RO4350B Materials

At the core of the RO4350B PCB's success is its unique composition. Rogers RO4350B materials combine woven glass reinforcement with hydrocarbon/ceramics, delivering electrical performance that rivals traditional PTFE options while ensuring manufacturability similar to epoxy/glass. This innovative construction enables tight control over dielectric constant (Dk) and minimizes loss, making it ideal for high-frequency applications.



Key Properties of RO4350B PCBs

The RO4350B PCB boasts a dielectric constant of 3.48 ± 0.05 at 10 GHz, ensuring minimal signal degradation. Its dissipation factor of 0.0037 enhances energy efficiency, a critical requirement for modern high-speed electronics. These attributes make RO4350B PCBs a reliable choice for various applications, from telecommunications to automotive sensors.



Property RO4350B Direction Units Condition Test Method
Dielectric Constant,εProcess 3.48±0.05 Z   10 GHz/23℃ IPC-TM-650 2.5.5.5 Clamped Stripline
Dielectric Constant,εDesign 3.66 Z   8 to 40 GHz Differential Phase Length Method
Dissipation Factortan,δ 0.0037
0.0031
Z   10 GHz/23℃
2.5 GHz/23℃
IPC-TM-650 2.5.5.5
Thermal Coefficient of ε +50 Z ppm/℃ -50℃to 150℃ IPC-TM-650 2.5.5.5
Volume Resistivity 1.2 x 1010   MΩ.cm COND A IPC-TM-650 2.5.17.1
Surface Resistivity 5.7 x109   COND A IPC-TM-650 2.5.17.1
Electrical Strength 31.2(780) Z Kv/mm(v/mil) 0.51mm(0.020") IPC-TM-650 2.5.6.2
Tensile Modulus 16,767(2,432)
14,153(2,053)
X
Y
MPa(ksi) RT ASTM D 638
Tensile Strength 203(29.5)
130(18.9)
X
Y
MPa(ksi) RT ASTM D 638
Flexural Strength 255
(37)
  MPa
(kpsi)
  IPC-TM-650 2.4.4
Dimensional Stability <0.5 X,Y mm/m
(mil/inch)
after etch+E2/150℃ IPC-TM-650 2.4.39A
Coefficient of Thermal Expansion 10
12
32
X
Y
Z
ppm/℃ -55℃to288℃ IPC-TM-650 2.4.41
Tg >280   ℃ TMA A IPC-TM-650 2.4.24.3
Td 390   ℃ TGA   ASTM D 3850
Thermal Conductivity 0.69   W/M/oK 80℃ ASTM C518
Moisture Absorption 0.06   % 48hrs immersion 0.060"
sample Temperature 50℃
ASTM D 570
Density 1.86   gm/cm3 23℃ ASTM D 792
Copper Peel Stength 0.88
(5.0)
  N/mm
(pli)
after solder float 1 oz.
EDC Foil
IPC-TM-650 2.4.8
Flammability (3)V-0       UL 94
Lead-free Process Compatible Yes



Cost-Effectiveness Without Compromise

One of the most compelling reasons to choose RO4350B PCBs is their cost-effectiveness. These boards are manufactured using processes similar to those of standard FR-4 materials, allowing for reduced fabrication costs. Engineers can achieve high-performance results at a fraction of the cost associated with traditional microwave laminates, making RO4350B a smart choice for budget-conscious projects.



Dimensional Stability and Thermal Resistance

Dimensional stability is crucial in high-frequency designs, and the RO4350B PCB excels in this regard. Its thermal coefficient of expansion closely matches that of copper, ensuring reliable performance in multi-layer board constructions. The PCB features a two-layer stackup with:



- Copper Layer Thickness: 35 μm on both layers.
- Rogers RO4350B Core Thickness: 0.338 mm (13.3 mil).
- Finished Board Thickness: 0.5 mm.



Additionally, with a glass transition temperature (Tg) exceeding 280°C (536°F), the RO4350B maintains its structural integrity even under extreme thermal conditions.



Rogers RO4350B PCBs Cost-Effective Choice For High Frequency Applications 0



Water Absorption and Reliability

The RO4350B PCB features a low water absorption rate of just 0.06%, which enhances its reliability in diverse environments. This characteristic helps prevent delamination and ensures long-term durability, making it suitable for applications where moisture exposure is a concern.



Versatile Applications Across Industries

The versatility of RO4350B PCBs makes them ideal for various high-frequency applications. They are widely used in:


- Cellular Base Station Antennas: Supporting the growing demand for mobile connectivity.


- RF Identification Tags: Facilitating efficient tracking solutions.


- Automotive Radar and Sensors: Enhancing safety and precision in vehicle systems.


- LNBs for Direct Broadcast Satellites: Delivering high-quality signal transmission.



Quality Assurance and Testing Standards

Every PCB undergoes rigorous 100% electrical testing before shipment, adhering to IPC-Class-2 quality standards. This commitment to quality ensures that each board meets the highest performance expectations, providing peace of mind for engineers and designers.



Conclusion: The Future of PCB Technology

In summary, the RO4350B PCB is a revolutionary solution for high-frequency applications, combining performance, reliability, and cost-effectiveness. With its advanced material properties and versatile applications, it stands ready to meet the challenges of modern electronics.
