| High Light: | RO4003C RF PCB,2 Layer RF PCB,RF Immersion Gold Printed Circuit Board |
||
|---|---|---|---|
Introducing the Rogers RO4003C Hydrocarbon Ceramic PCB, a high-performance solution provided for performance-sensitive and high-volume applications. With its exceptional electrical properties, stability, and reliable construction, this PCB offers a wide range of features and benefits that cater to the demanding needs of various industries. From cellular base stations to automotive radar systems, the RO4003C PCB delivers outstanding performance and reliability.
| RO4003C Typical Value | |||||
| Property | RO4003C | Direction | Units | Condition | Test Method |
| Dielectric Constant,εProcess | 3.38±0.05 | Z | 10 GHz/23℃ | IPC-TM-650 2.5.5.5 Clamped Stripline | |
| Dielectric Constant,εDesign | 3.55 | Z | 8 to 40 GHz | Differential Phase Length Method | |
| Dissipation Factortan,δ | 0.0027 0.0021 |
Z | 10 GHz/23℃ 2.5 GHz/23℃ |
IPC-TM-650 2.5.5.5 | |
| Thermal Coefficient of ε | +40 | Z | ppm/℃ | -50℃to 150℃ | IPC-TM-650 2.5.5.5 |
| Volume Resistivity | 1.7 x 1010 | MΩ.cm | COND A | IPC-TM-650 2.5.17.1 | |
| Surface Resistivity | 4.2 x 109 | MΩ | COND A | IPC-TM-650 2.5.17.1 | |
| Electrical Strength | 31.2(780) | Z | Kv/mm(v/mil) | 0.51mm(0.020") | IPC-TM-650 2.5.6.2 |
| Tensile Modulus | 19,650(2,850) 19,450(2,821) |
X Y |
MPa(ksi) | RT | ASTM D 638 |
| Tensile Strength | 139(20.2) 100(14.5) |
X Y |
MPa(ksi) | RT | ASTM D 638 |
| Flexural Strength | 276 (40) |
MPa (kpsi) |
IPC-TM-650 2.4.4 | ||
| Dimensional Stability | <0.3 | X,Y | mm/m (mil/inch) |
after etch+E2/150℃ | IPC-TM-650 2.4.39A |
| Coefficient of Thermal Expansion | 11 14 46 |
X Y Z |
ppm/℃ | -55℃to288℃ | IPC-TM-650 2.4.41 |
| Tg | >280 | ℃ TMA | A | IPC-TM-650 2.4.24.3 | |
| Td | 425 | ℃ TGA | ASTM D 3850 | ||
| Thermal Conductivity | 0.71 | W/M/oK | 80℃ | ASTM C518 | |
| Moisture Absorption | 0.06 | % | 48hrs immersion 0.060" sample Temperature 50℃ |
ASTM D 570 | |
| Density | 1.79 | gm/cm3 | 23℃ | ASTM D 792 | |
| Copper Peel Stength | 1.05 (6.0) |
N/mm (pli) |
after solder float 1 oz. EDC Foil |
IPC-TM-650 2.4.8 | |
| Flammability | N/A | UL 94 | |||
| Lead-free Process Compatible | Yes | ||||
The RO4003C PCB is constructed with Rogers RO4003C Hydrocarbon Ceramic woven glass material, known for its superior dielectric constant and low dissipation factor. With a dielectric constant of DK 3.38 at 10 GHz and a dissipation factor of 0.0027 at 10 GHz, this PCB provides excellent electrical performance and allows for applications with higher operating frequencies.
One of the key advantages of the RO4003C PCB is its stable electrical properties across different frequencies. This feature enables the design of controlled impedance transmission lines and the repeatable design of filters, ensuring consistent and reliable performance.
With a low thermal coefficient of the dielectric constant, the RO4003C PCB exhibits excellent dimensional stability, even under varying temperatures. It also boasts low Z-axis expansion, ensuring the reliability of plated-through holes. The low in-plane expansion coefficient of the PCB ensures stability throughout the circuit processing temperatures.
The RO4003C PCB is designed for volume manufacturing processes and can be fabricated using standard glass epoxy processes, making it a cost-effective choice for high-volume production.

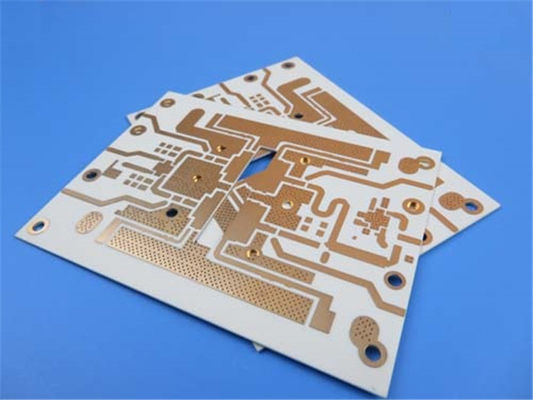

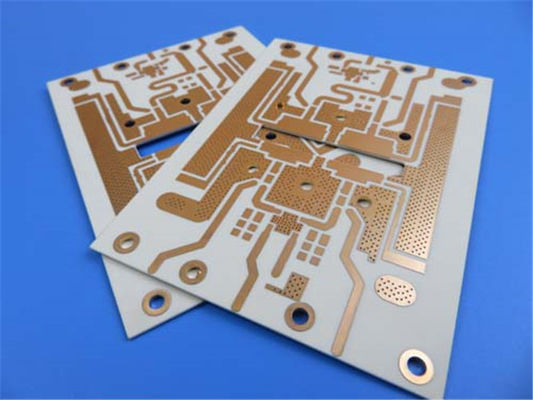

In terms of construction, the RO4003C PCB is a 2-layer rigid PCB with a copper layer thickness of 35 μm on both sides. The board dimensions are 335.15mm x 150.8mm with a finished board thickness of 0.9mm. It features a minimum trace/space of 5/5 mils and a minimum hole size of 0.45mm. The PCB undergoes a rigorous 100% electrical test prior to shipment, ensuring its reliability and quality.
With 158 components, 291 total pads, and 351 vias, the RO4003C PCB provides ample room for various electronic components and connections. It adheres to the IPC-Class-2 quality standard, ensuring high-quality manufacturing and performance.
The Rogers RO4003C Hydrocarbon Ceramic PCB finds numerous applications across industries. It is commonly used in cellular base station antennas and power amplifiers, RF identification tags, automotive radar and sensors, and LNBs for direct broadcast satellites.
For any technical inquiries or further information about the RO4003C PCB, please contact Ivy at sales10@bichengpcb.com. The Rogers RO4003C Hydrocarbon Ceramic PCB is available worldwide, providing global access to this high-performance and reliable PCB solution.
RO4003C PCB: Unleashing High-Performance Solutions for Demanding Applications
Introduction:
RO4003C PCB, utilizing Rogers' advanced hydrocarbon ceramic woven glass material, has emerged as a game-changer in the world of printed circuit boards (PCBs). With its exceptional electrical properties, stability, and reliability, RO4003C PCB offers a wide range of benefits for performance-sensitive and high-volume applications. In this article, we delve into the remarkable features and applications of RO4003C PCB, showcasing its ability to deliver exceptional performance across various industries.
I. Unveiling the Power of RO4003C PCB
- Rogers RO4003C Hydrocarbon Ceramic Woven Glass Material: Highlighting the revolutionary material used in the construction of RO4003C PCB, known for its outstanding dielectric properties and reliability.
- Dielectric Constant and Dissipation Factor: Exploring the impressive dielectric constant of DK 3.38 at 10 GHz and a low dissipation factor of 0.0027 at 10 GHz, ensuring excellent electrical performance and low signal loss.
II. Benefits for Performance-Critical Applications
A) Low Dielectric Tolerance and Low Loss:
- Exceptional Electrical Performance: Showcasing the ability of RO4003C PCB to provide low dielectric tolerance and low loss, enabling applications with higher operating frequencies.
- Ideal for Broadband Applications: Highlighting the suitability of RO4003C PCB for broadband applications, where consistent and reliable performance is crucial.
B) Stable Electrical Properties vs. Frequency:
- Controlled Impedance Transmission Lines: Exploring the advantages of using RO4003C PCB for controlled impedance transmission lines, ensuring consistent signal integrity and minimizing signal distortion.
- Repeatable Design of Filters: Showcasing how the stable electrical properties of RO4003C PCB enable the repeatable design of filters, ensuring reliable and consistent performance.
III. Unparalleled Stability and Reliability
A) Low Thermal Coefficient of Dielectric Constant:
- Excellent Dimensional Stability: Highlighting the ability of RO4003C PCB to maintain dimensional stability under varying temperatures, ensuring reliable performance and reduced risk of failure.
B) Low Z-Axis Expansion:
- Reliable Plated-Through Holes: Showcasing the low Z-axis expansion of RO4003C PCB, ensuring the reliability of plated-through holes and enhancing the overall durability of the PCB.
C) Low In-Plane Expansion Coefficient:
- Stability Across Circuit Processing Temperatures: Exploring how RO4003C PCB remains stable over a wide range of circuit processing temperatures, ensuring consistent performance during manufacturing and assembly processes.
IV. Cost-Effective Volume Manufacturing Process
- Standard Glass Epoxy Process: Highlighting the advantage of RO4003C PCB being compatible with standard glass epoxy processes, making it a cost-effective choice for high-volume production.
- Competitive Pricing: Showcasing how RO4003C PCB offers a balance between exceptional performance and competitive pricing, making it an attractive option for various industries.
V. Versatile Applications Across Industries
- Cellular Base Station Antennas and Power Amplifiers: Discussing the role of RO4003C PCB in enhancing performance in cellular base station antennas and power amplifiers.
- RF Identification Tags: Exploring the benefits of using RO4003C PCB in RF identification tags, ensuring reliable and accurate data transmission.
- Automotive Radar and Sensors: Highlighting the reliability and stability of RO4003C PCB in automotive radar and sensor systems, where consistent performance is critical.
- LNBs for Direct Broadcast Satellites: Showcasing how RO4003C PCB enhances the performance of LNBs in direct broadcast satellite systems.
Conclusion:
RO4003C PCB has revolutionized the world of high-performance PCBs, offering exceptional electrical properties, stability, and reliability. With its low dielectric tolerance, low loss, and stable electrical properties, RO4003C PCB enables high-frequency applications and ensures consistent performance. Its reliability, low thermal coefficient, and dimensional stability make it a preferred choice for demanding industries. Whether it's cellular base stations, automotive radar systems, or satellite applications, RO4003C PCB delivers unmatched performance and reliability. Embrace the power of RO4003C PCB and unlock the full potential of your electronic designs.
