Rogers 4350 PCB Double Sided High Frequency Circuit Boards 10 Mil
  • name
  • name

Rogers 4350 PCB Double Sided High Frequency Circuit Boards 10 Mil

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-8.V1.0
Based Material:
Rogers 4350
Layer Count:
2 Layers
PCB Thickness:
10 Mil
Surface Finsh:
Immersion Gold
Highlight:

Double Sided High Frequency Circuit Boards

,

Rogers 4350 PCB Circuit Boards

,

10 Mil Rogers PCB Board

Product Description

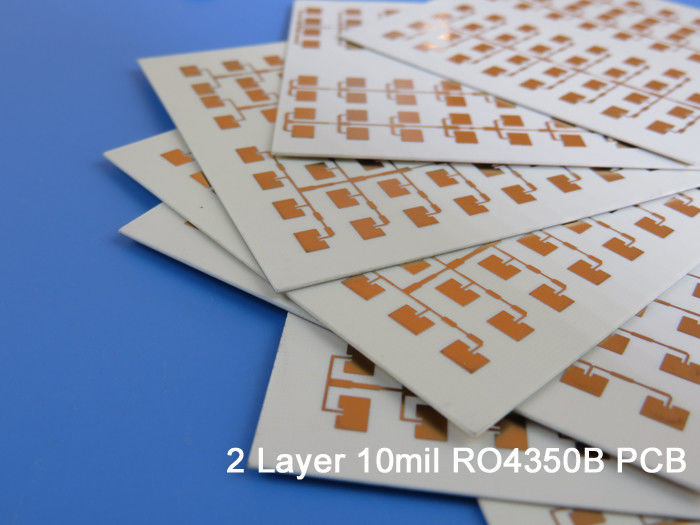

Rogers 4350 PCB 10 mil double sided High Frequency Circuit Boards



Rogers 4350 high frequency PCBs are made of hydrocarbon ceramic laminates which are designed to offer superior high frequency performance and low cost high volume applications. They are not PTFE that can be manufactured using standard epoxy/glass (FR-4) processes.

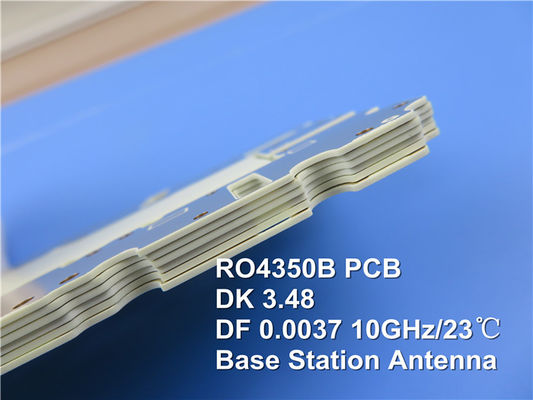

It has dielectric constant of 3.48,dissipation factor of 0.0037 at 10 GHz. Low dielectric tolerance and low loss allows applications with higher operating frequencies.



The expansion coefficient of roges 4350 circuits is similar to that of copper that allows the board exhibiting excellent dimensional stability. And it has a Tg of >280°C (536°F), so the expansion characteristics remain stable over the entire range of circuit processing temperatures.



Rogers RO4350B PCBs have been used sucessfullly more than 10 years in high power amplifiers, microwave power amplifiers, celluar base station antennas etc.



RO4350B Typical Value
Property RO4350B Direction Units Condition Test Method
Dielectric Constant,εProcess 3.48±0.05 Z   10 GHz/23℃ IPC-TM-650 2.5.5.5 Clamped Stripline
Dielectric Constant,εDesign 3.66 Z   8 to 40 GHz Differential Phase Length Method
Dissipation Factortan,δ 0.0037
0.0031		 Z   10 GHz/23℃
2.5 GHz/23℃		 IPC-TM-650 2.5.5.5
Thermal Coefficient of ε +50 Z ppm/℃ -50℃to 150℃ IPC-TM-650 2.5.5.5
Volume Resistivity 1.2 x 1010   MΩ.cm COND A IPC-TM-650 2.5.17.1
Surface Resistivity 5.7 x109   MΩ COND A IPC-TM-650 2.5.17.1
Electrical Strength 31.2(780) Z Kv/mm(v/mil) 0.51mm(0.020") IPC-TM-650 2.5.6.2
Tensile Modulus 16,767(2,432)
14,153(2,053)		 X
Y		 MPa(ksi) RT ASTM D 638
Tensile Strength 203(29.5)
130(18.9)		 X
Y		 MPa(ksi) RT ASTM D 638
Flexural Strength 255
(37)		   MPa
(kpsi)		   IPC-TM-650 2.4.4
Dimensional Stability <0.5 X,Y mm/m
(mil/inch)		 after etch+E2/150℃ IPC-TM-650 2.4.39A
Coefficient of Thermal Expansion 10
12
32		 X
Y
Z		 ppm/℃ -55℃to288℃ IPC-TM-650 2.4.41
Tg >280   ℃ TMA A IPC-TM-650 2.4.24.3
Td 390   ℃ TGA   ASTM D 3850
Thermal Conductivity 0.69   W/M/oK 80℃ ASTM C518
Moisture Absorption 0.06   % 48hrs immersion 0.060"
sample Temperature 50℃		 ASTM D 570
Density 1.86   gm/cm3 23℃ ASTM D 792
Copper Peel Stength 0.88
(5.0)		   N/mm
(pli)		 after solder float 1 oz.
EDC Foil		 IPC-TM-650 2.4.8
Flammability (3)V-0       UL 94
Lead-free Process Compatible Yes







Rogers 4350 PCB Double Sided High Frequency Circuit Boards 10 Mil 0
