RT5880LZ Multilayer Rogers PCB Board 10mil Double Sided
  • name
  • name

RT5880LZ Multilayer Rogers PCB Board 10mil Double Sided

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-191.V1.0
Base Material:
Unique PTFE Composites
Layer Count:
Double Sided PCB, Multilayer PCB, Hybrid PCB
PCB Thickness:
10mil (0.254mm), 20mil (0.508mm), 50mil (1.270mm), 100mil (2.540mm )
PCB Size:
≤400mm X 500mm
Solder Mask:
Green, Black, Blue, Yellow, Red Etc.
Copper Weight:
0.5oz (17 µm), 1oz (35µm)
Surface Finish:
Bare Copper, HASL, ENIG, Immersion Silver, Immersion Tin, OSP, Pure Gold Plated Etc..
Highlight:

10mil Rogers Circuit Board

,

Multilayer Rogers Printed Circuit Board

,

RT5880LZ Rogers PCB Board

Product Description

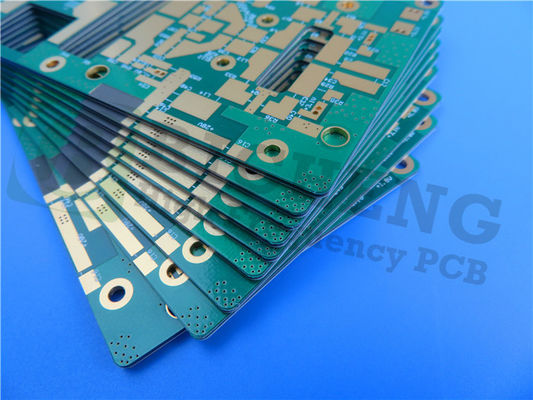

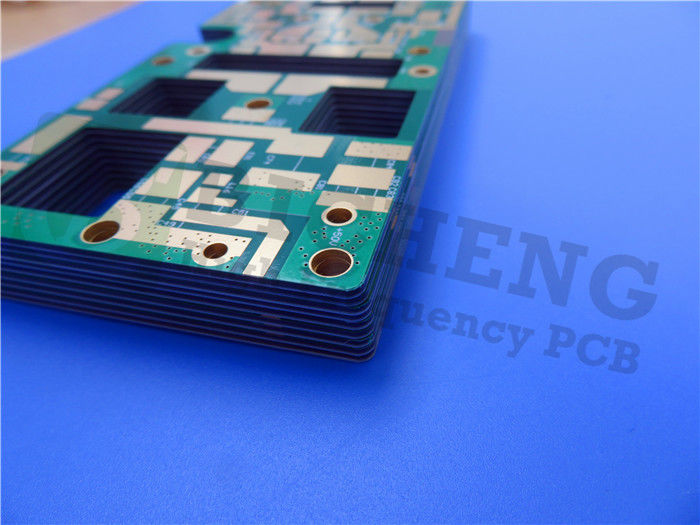

Rogers RT/duroid 5880LZ High Frequency PCB 10mil 20mil 50mil and 100mil RT5880LZ PCB

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



Rogers RT/duroid 5880LZ laminates are unique PTFE composites, which are designed for exacting stripline and microstrip circuit applications. The unique filler results in a low density, lightweight material for high performance and weight sensitive applications.



The very low dielectric constant is uniform from panel to panel and is constant over a wide frequency range. Its low dissipation factor extends the usefulness to Ku-band and above.



Features:

1. Lowest dielectric constant of 2.00 +/- 0.04

2. Low dissipation factor ranging from .0021 to .0027 at 10GHz

3. Low Z-axis coefficient of thermal expansion at 40 ppm/°C

4. Lightweight / low density of 1.4 gm/cm sq.

5. Uniform electrical properties over a wide frequency range

6. Resistant to all solvents and reagents, hot or cold, normally used in etching or plating



Some Typical Applications:

1. Airborne antenna system

2. Lightweight feed networks

3. Military radar systems

4. Missile guidance systems

5. Point-to-point digital radio antennas



RT5880LZ Multilayer Rogers PCB Board 10mil Double Sided 0



Our PCB Capability (RT/duroid 5880LZ)

PCB Material: Unique PTFE Composites
Designation: RT/Duroid 5880LZ
Dielectric constant: 2
Dissipation Factor 0.0021 10GHz
Layer count: Double Sided PCB, Multilayer PCB, Hybrid PCB
Copper weight: 0.5oz (17 µm), 1oz (35µm)
Laminate thickness: 10mil (0.254mm), 20mil (0.508mm), 50mil (1.270mm), 100mil (2.540mm )
PCB size: ≤400mm X 500mm
Solder mask: Green, Black, Blue, Yellow, Red etc.
Surface finish: Bare copper, HASL, ENIG, Immersion silver, Immersion tin, OSP, Pure gold plated etc..



Typical Value of RT/duroid 5880LZ

Property Typical Value RT/duroid® 5880LZ Direction Units Condition Test Method
Dielectric Constant er,Process 2.00 ± 0.04 Z   10 GHz/23°C IPC-TM-650, 2.5.5.5
Dielectric Constant er,Design 2.00 Z   8 GHz - 40 GHz Differential Phase Length Method
Dissipation Factor, tan Typ: 0.0021 Max: 0.0027 Z   10GHz/23°C IPC-TM-650, 2.5.5.5
Thermal Coefficient of Dielectric Constant, er +20 Z ppm/°C -50°C to 150°C 10GHz IPC-TM-650, 2.5.5.5
Volume Resistivity 1.74 X 10^7   Mohm•cm C-96/35/90 IPC-TM-650, 2.5.17.1
Surface Resistivity 2.08 X 10^6   Mohm C-96/35/90 IPC-TM-650, 2.5.17.1
Electrical Strength 40   KV D48/50 IPC-TM-650, 2.5.6
Dimensional Stability -0.38 X,Y %   IPC-TM-650, 2.4.39A
Moisture Absorption 0.31   % 24 hours/23°C IPC-TM-650, 2.6.2.1
Thermal Conductivity 0.33 Z W/m/°K 80°C ASTM C518
Coefficient of Thermal Expansion 54, 47 40 X,Y Z ppm/°C 0 to 150°C IPC-TM-650, 2.4.41
Outgassing
TML 0.01   %   ASTM E-595
CVCM 0.01
WVR 0.01
Density 1.4   gm/cm^3   ASTM D792
Copper Peel >4.0   pli   IPC-TM-650, 2.4.8
Flammability V-O       UL 94
Lead-Free Process Compatible YES



RT5880LZ Multilayer Rogers PCB Board 10mil Double Sided 1



Tags:

RO4003C LoPro Rogers PCB Board,

8mil Rogers PCB Board,

0.5oz Rogers PCB Board
