Rogers 4350 PCB Dual Layer 60.7mil HASL Surface Finish Pcb IATF16949
  • name
  • name
  • name
  • name

Rogers 4350 PCB Dual Layer 60.7mil HASL Surface Finish Pcb IATF16949

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-137.V1.0
Base Material:
Hydrocarbon Ceramic Laminates
Layer Count:
Double Layer, Multilayer, Hybrid PCB
PCB Thickness:
10.7mil (0.272mm), 14mil (0.356mm), 17.3mil (0.439mm), 20.7mil(0.526mm), 30.7mil (0.780mm), 60.7mil(1.542mm)
PCB Size:
≤400mm X 500mm
Solder Mask:
Green, Black, Blue, Yellow, Red Etc.
Copper Weight:
0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
Surface Finish:
Bare Copper, HASL, ENIG, OSP, Immersion Tin Etc..
Highlight:

RO4350B Surface Finish Pcb

,

HASL Surface Finish Pcb

,

60.7mil Surface Finish Pcb

Product Description

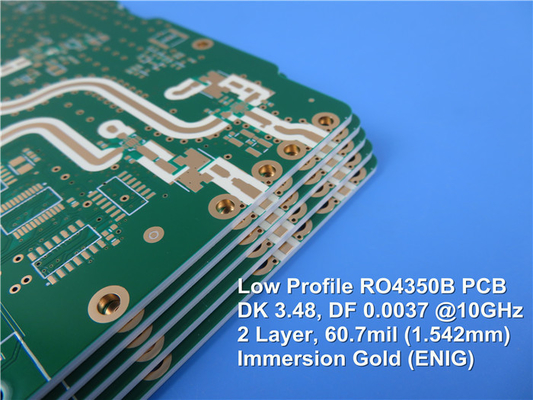

Dual Layer Rogers PCB Built on 60.7mil RO4350B LoPro Reverse Treated Foil With ENIG for High Speed Back Planes

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



Rogers 4350 LoPro laminates use a proprietary Rogers' technology that allows reverse treated foil to bond to standard rogers 4350 dielectric. This results in a laminate with low conductor loss for improved insertion loss and signal integrity while maintaining all other desirable attributes of the standard RO4350B laminate system.



Features and Benefits:

RO4350B materials are reinforced hydrocarbon/ceramic laminates with very low profile reverse treated foil.

1. Lower insertion loss

2. Low PIM

3. Increased signal integrity

4. High circuit density



Low Z-axis coefficient of thermal expansion

1. Multi-layer board capability

2. Design flexibility



Lead-free process compatible

1. High temperature processing

2. Meets environmental concerns



CAF resistant



Our PCB Capability (RO4350B LoPro)

Our PCB Capability (RO4350B LoPro)
PCB Material: Hydrocarbon Ceramic Laminates
Designation: RO4350B LoPro
Dielectric constant: 3.48±0.05
Layer count: Double Layer, Multilayer, Hybrid PCB
Copper weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
PCB thickness: 10.7mil (0.272mm), 14mil (0.356mm), 17.3mil (0.439mm), 20.7mil(0.526mm), 30.7mil (0.780mm), 60.7mil(1.542mm)
PCB size: ≤400mm X 500mm
Solder mask: Green, Black, Blue, Yellow, Red etc.
Surface finish: Bare copper, HASL, ENIG, OSP, Immersion tin etc..



Some Typical Applications:

1. Digital applications such as servers, routers, and high speed back planes

2. Cellular base station antennas and power amplifiers

3. LNB’s for direct broadcast satellites

4. RF Identification Tags



Typical Properties of RO4350B LoPro

Typical Properties of RO4350B LoPro
Property Typical Value Direction Units Condition Test Method
Dielectric Constant, Process 3.48 ± 0.05 z -- 10 GHz/23°C IPC-TM-650 2.5.5.5 Clamped Stripline
Dielectric Constant, Design 3.55 z -- 8 to 40 GHz Differential Phase Length Method
Dissipation Factor tan, 0.0037 0.0031 z -- 10 GHz/23°C 2.5 GHz/23°C IPC-TM-650 2.5.5.5
Thermal Coeffifi cient of r 50 z ppm/°C -50°C to 150°C IPC-TM-650 2.5.5.5
Volume Resistivity 1.2 X 1010   MΩ•cm COND A IPC-TM-650 2.5.17.1
Surface Resistivity 5.7 X 109   MΩ COND A IPC-TM-650 2.5.17.1
Electrical Strength 31.2(780) z KV/mm(V/mil) 0.51mm(0.020”) IPC-TM-650 2.5.6.2
Tensile Modulus 11473(1664) Y MPa(kpsi) RT ASTM D638
Tensile Strength 175(25.4) Y MPa(kpsi) RT ASTM D638
Flexural Strength 255(37)   MPa(kpsi)   IPC-TM-650 2.4.4
Dimensional Stability <0.5 X,Y mm/m(mils/inch) after etch +E2/150°C IPC-TM-650 2.4.39A
Coeffifi cient of Thermal Expansion 14 x ppm/°C -55 to 288°C IPC-TM-650 2.1.41
16 y
35 z
Tg >280   °C TMA A IPC-TM-650 2.4.24.3
Td 390   °C TGA   ASTM D3850
Thermal Conductivity 0.62   W/m/°K 80°C ASTM C518
Moisture Absorption 0.06   % 48 hrs immersion 0.060” sample Temperature 50°C ASTM D570
Density 1.86   gm/cm3 23°C ASTM D792
Copper Peel Strength 0.88(5.0)   N/mm(pli) after solder float 1 oz. TC Foil IPC-TM-650 2.4.8
Flammability V-0       UL 94
Lead-Free Process Compatible Yes
