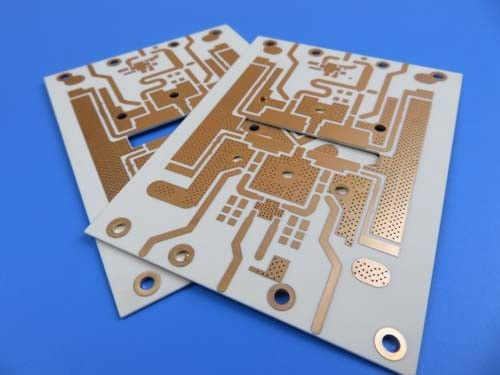

Customized Double Sided RF PCB 32mil Rogers 0.813mm RO4003C

Customized Double Sided RF PCB 32mil Rogers 0.813mm RO4003C
Customized Double Sided RF PCB 32mil Rogers 0.813mm RO4003C Customized Double Sided RF PCB 32mil Rogers 0.813mm RO4003C

Large Image :  Customized Double Sided RF PCB 32mil Rogers 0.813mm RO4003C

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-006.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: RO4300C PCB Thickness: 0.9mm
PCB Size: 98 X 72mm=1PCS Layer Count: 2 Layers
Copper Weight: 35um Surface Finish: ENIG
High Light:

32mil Rogers PCB Board

,

RO4003C Double Sided PCB Board

,

Customized RF PCB Board



Rogers 4003 32mil 0.813mm PCB RO4003C Double Sided RF High Frequency PCB for Filters

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



RO4003C hydrocarbon ceramic laminates are designed to deliver exceptional high-frequency performance while keeping circuit construction costs low. As operating frequencies exceed 500 MHz, the laminates available for designers become limited, but RO4003C remains a reliable choice for RF microwave circuits, matching networks, and controlled impedance transmission lines. Its low dielectric loss makes it a preferred material for applications where standard circuit board materials cannot be used at higher operating frequencies. Additionally, RO4003C has a consistent dielectric constant across a wide frequency range and one of the lowest temperature coefficients of any circuit board material. Its thermal coefficient of expansion (CTE) offers several advantages to PCB designers, including high dimensional stability, which is critical for creating mixed dielectric multi-layer boards. Even under extreme thermal shock conditions, RO4003C's low Z-axis CTE ensures dependable plated through-hole quality. Furthermore, the material's expansion characteristics remain stable across the entire temperature range of PCB processing, thanks to its Tg of >280C.



PCB Specifications

PCB SIZE 98 x 72mm=1PCS
BOARD TYPE
Number of Layers Double sided PCB
Surface Mount Components YES
Through Hole Components YES
LAYER STACKUP copper ------- 35um(1oz)+PLATE
RO4003C 32 mil 0.813mm
copper ------- 35um(1oz)+PLATE
TECHNOLOGY
Minimum Trace and Space: 6.98mil/6.28mil
Minimum / Maximum Holes: 0.3/1.2mm
Number of Different Holes: 5
Number of Drill Holes: 481
Number of Milled Slots: 0
Number of Internal Cutouts: 1
Impedance Control no
BOARD MATERIAL
Glass Epoxy: RO4003C 32 mil (0.813mm), Tg 288
Final foil external: 1.5oz
Final foil internal: 0oz
Final height of PCB: 0.9 mm ±0.1
PLATING AND COATING
Surface Finish Immersion Gold
Solder Mask Apply To: NO
Solder Mask Color: NO
Solder Mask Type: N/A
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend NO
Colour of Component Legend NO
Manufacturer Name or Logo: N/A
VIA Plated Through Hole(PTH)
FLAMIBILITY RATING N/A
DIMENSION TOLERANCE
Outline dimension: 0.0059" (0.15mm)
Board plating: 0.0030" (0.076mm)
Drill tolerance: 0.002" (0.05mm)
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.



RO4003C PCBs (Printed Circuit Boards) play a critical role in various electronic applications, including automotive radar and sensors, cellular base station antennas, direct broadcast satellites, low noise block, power amplifiers, and RFID.



Customized Double Sided RF PCB 32mil Rogers 0.813mm RO4003C 0



Data Sheet of Rogers 4003C (RO4003C)

RO4003C Typical Value
Property RO4003C Direction Units Condition Test Method
Dielectric Constant,εProcess 3.38±0.05 Z   10 GHz/23 IPC-TM-650 2.5.5.5 Clamped Stripline
Dielectric Constant,εDesign 3.55 Z   8 to 40 GHz Differential Phase Length Method
Dissipation Factortan,δ 0.0027
0.0021
Z   10 GHz/23
2.5 GHz/23
IPC-TM-650 2.5.5.5
Thermal Coefficient of ε +40 Z ppm/ -50to 150 IPC-TM-650 2.5.5.5
Volume Resistivity 1.7 x 1010   MΩ.cm COND A IPC-TM-650 2.5.17.1
Surface Resistivity 4.2 x 109   COND A IPC-TM-650 2.5.17.1
Electrical Strength 31.2(780) Z Kv/mm(v/mil) 0.51mm(0.020") IPC-TM-650 2.5.6.2
Tensile Modulus 19,650(2,850)
19,450(2,821)
X
Y
MPa(ksi) RT ASTM D 638
Tensile Strength 139(20.2)
100(14.5)
X
Y
MPa(ksi) RT ASTM D 638
Flexural Strength 276
(40)
  MPa
(kpsi)
  IPC-TM-650 2.4.4
Dimensional Stability <0.3 X,Y mm/m
(mil/inch)
after etch+E2/150 IPC-TM-650 2.4.39A
Coefficient of Thermal Expansion 11
14
46
X
Y
Z
ppm/ -55to288 IPC-TM-650 2.4.41
Tg >280   TMA A IPC-TM-650 2.4.24.3
Td 425   TGA   ASTM D 3850
Thermal Conductivity 0.71   W/M/oK 80 ASTM C518
Moisture Absorption 0.06   % 48hrs immersion 0.060"
sample Temperature 50
ASTM D 570
Density 1.79   gm/cm3 23 ASTM D 792
Copper Peel Stength 1.05
(6.0)
  N/mm
(pli)
after solder float 1 oz.
EDC Foil
IPC-TM-650 2.4.8
Flammability N/A       UL 94
Lead-free Process Compatible Yes
