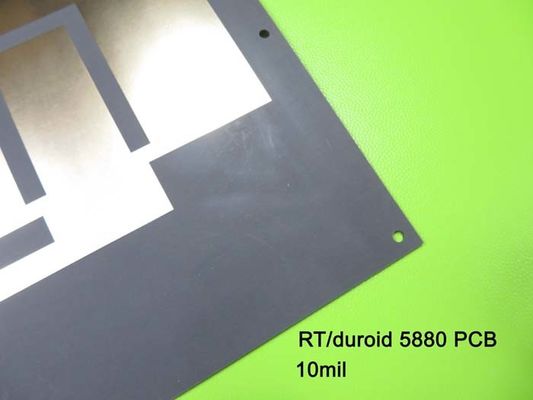

Rogers 5880 10mil 0.254mm High Frequency PCB For Microstrip And Stripline Circuits

Rogers 5880 10mil 0.254mm High Frequency PCB For Microstrip And Stripline Circuits
Rogers 5880 10mil 0.254mm High Frequency PCB For Microstrip And Stripline Circuits Rogers 5880 10mil 0.254mm High Frequency PCB For Microstrip And Stripline Circuits

Large Image :  Rogers 5880 10mil 0.254mm High Frequency PCB For Microstrip And Stripline Circuits

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-019.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: RT/Duroid 5880 Layer Count: 2 Layers
PCB Thickness: 0.3mm PCB Size: 130 X 100mm=1PCS
Copper Weight: 0.5oz Surface Finish: Immersion Gold
High Light:

0.254mm High Frequency PCB

,

10mil High Frequency PCB

,

Rogers High Frequency PCB

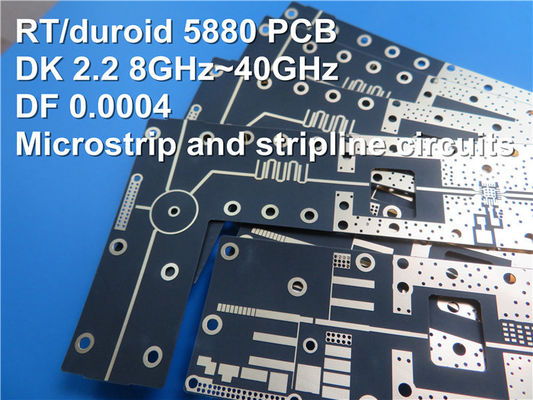

Rogers RT/Duroid 5880 10mil 0.254mm High Frequency PCB for Microstrip and Stripline Circuits

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



Rogers RT/duroid 5880 high frequency material is glass microfiber reinforced PTFE composites which is designed for exacting stripline and microstrip circuit applications. The exceptional dielectric constant uniformity results from its randomly oriented microfibers. The dielectric constant of RT/duroid 5880 is uniform from panel to panel and is constant over a wide frequency range. Its low dissipation factor extends the usefulness of RT/duroid 5880 to Ku-band and above. RT/duroid 5880 materials are easily cut, sheared and machined to shape. They are resistant to all solvents and reagents, hot or cold, normally used in etching printed circuits or in plating edges and holes.



The typical applications are commercial airline broadband antennas, microstrip circuits, stripline circuits, millimeter wave applications, military radar systems, missile guidance systems and point to point digital radio antennas etc.



PCB Specifications

PCB SIZE 130 x 100mm=1PCS
BOARD TYPE Double sided PCB
Number of Layers 2 layers
Surface Mount Components YES
Through Hole Components YES
LAYER STACKUP copper ------- 18um(0.5 oz)+plate TOP layer
RT/duroid 5880 0.254mm
copper ------- 18um(0.5oz) + plate BOT Layer
TECHNOLOGY
Minimum Trace and Space: 5 mil / 4 mil
Minimum / Maximum Holes: 0.2 mm / 0.2mm
Number of Different Holes: 1
Number of Drill Holes: 15
Number of Milled Slots: 0
Number of Internal Cutouts: 0
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy: RT/duroid 5880 0.254mm
Final foil external: 1.0 oz
Final foil internal: N/A
Final height of PCB: 0.3 mm ±0.1
PLATING AND COATING
Surface Finish Immersion gold
Solder Mask Apply To: N/A
Solder Mask Color: N/A
Solder Mask Type: N/A
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend N/A
Colour of Component Legend N/A
Manufacturer Name or Logo: N/A
VIA Plated through hole(PTH), minimum size 0.22mm. Via tented.
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.



Rogers 5880 10mil 0.254mm High Frequency PCB For Microstrip And Stripline Circuits 0



Data sheet of Rogers RT/duroid 5880

RT/duroid 5880 Typical Value
Property RT/duroid 5880 Direction Units Condition Test Method
Dielectric Constant,εProcess 2.20
2.20±0.02 spec.
Z N/A C24/23/50
C24/23/50
1 MHz IPC-TM-650 2.5.5.3
10 GHz IPC-TM 2.5.5.5
Dielectric Constant,εDesign 2.2 Z N/A 8GHz to 40 GHz Differential Phase Length Method
Dissipation Factor,tanδ 0.0004
0.0009
Z N/A C24/23/50
C24/23/50
1 MHz IPC-TM-650 2.5.5.3
10 GHz IPC-TM 2.5.5.5
Thermal Coefficient of ε -125 Z ppm/ -50to 150 IPC-TM-650 2.5.5.5
Volume Resistivity 2 x 107 Z Mohm cm C/96/35/90 ASTM D 257
Surface Resistivity 3 x 107 Z Mohm C/96/35/90 ASTM D 257
Specific Heat 0.96(0.23) N/A j/g/k
(cal/g/c)
N/A Calculated
Tensile Modulus Test at 23 Test at 100 N/A MPa(kpsi) A ASTM D 638
1070(156) 450(65) X
860(125) 380(55) Y
Ultimate Stress 29(4.2) 20(2.9) X
27(3.9) 18(2.6) Y
Ultimate Strain 6 7.2 X %
4.9 5.8 Y
Compressive Modulus 710(103) 500(73) X MPa(kpsi) A ASTM D 695
710(103) 500(73) Y
940(136) 670(97) Z
Ultimate Stress 27(3.9) 22(3.2) X
29(5.3) 21(3.1) Y
52(7.5) 43(6.3) Z
Ultimate Strain 8.5 8.4 X %
7.7 7.8 Y
12.5 17.6 Z
Moisture Absorption 0.02 N/A % 0.62"(1.6mm) D48/50 ASTM D 570
Thermal Conductivity 0.2 Z W/m/k 80 ASTM C 518
Coefficient of Thermal Expansion 31
48
237
X
Y
Z
ppm/ 0-100 IPC-TM-650 2.4.41
Td 500 N/A TGA N/A ASTM D 3850
Density 2.2 N/A gm/cm3 N/A ASTM D 792
Copper Peel 31.2(5.5) N/A Pli(N/mm) 1oz(35mm)EDC foil
after solder float
IPC-TM-650 2.4.8
Flammability V-0 N/A N/A N/A UL 94
Lead-free Process Compatible Yes N/A N/A N/A N/A
