RF-45 Immersion Silver 30mil RF PCB Board With Blue Solder Coating

RF-45 Immersion Silver 30mil RF PCB Board With Blue Solder Coating
RF-45 Immersion Silver 30mil RF PCB Board With Blue Solder Coating RF-45 Immersion Silver 30mil RF PCB Board With Blue Solder Coating RF-45 Immersion Silver 30mil RF PCB Board With Blue Solder Coating RF-45 Immersion Silver 30mil RF PCB Board With Blue Solder Coating

Large Image :  RF-45 Immersion Silver 30mil RF PCB Board With Blue Solder Coating

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-178.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: RF-45 Layer Count: 2 Layers
PCB Thickness: 0.8 Mm ±0.1 PCB Size: 70 X 55mm=1up
Solder Mask: Blue Silkscreen: White
Copper Weight: 0.5oz Surface Finish: Immersion Silver
High Light:

30mil RF PCB Board

,

Immersion Silver RF PCB Board

,

Blue Solder Coating RF PCB Board

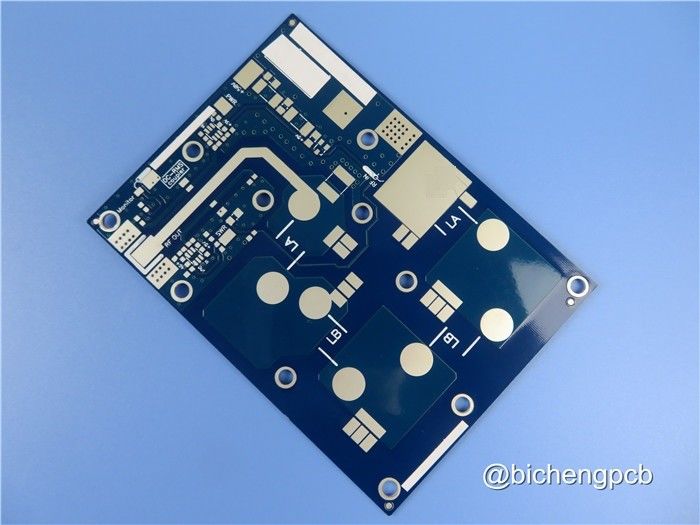

30mil RF-45 High Frequency PCB with Blue Solder Mask Coating Immersion Silver on Pads

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



Brief Introduction

This type of immersion silver RF PCB is made on one of Taconic’s ORCER family material: RF-45. The circuit board is dual layers with finished 1oz copper. Solder mask and silkscreen overlay are on top layer only. The bottom layer is fully exposed covered with immersion silver as the shield function. It’s 0.8mm thick and 50 boards are vacuum packed for shipment.



PCB Specifications

PCB SIZE 70 x 55mm=1up
BOARD TYPE Double sided PCB
Number of Layers 2 layers
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 17um(0.5 oz)+plate TOP layer
RF-45 0.787mm
copper ------- 17um(0.5 oz) + plate BOT Layer
TECHNOLOGY
Minimum Trace and Space: 4.0 mil / 5.0 mil
Minimum / Maximum Holes: 0.4 mm / 6.0 mm
Number of Different Holes: 1
Number of Drill Holes: 3
Number of Milled Slots: 1
Number of Internal Cutouts: no
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy: RF-45
Final foil external: 1.0 oz
Final foil internal: N/A
Final height of PCB: 0.8 mm ±0.1
PLATING AND COATING
Surface Finish Immersion silver, 39%
Solder Mask Apply To: Top Layer
Solder Mask Color: Blue
Solder Mask Type: Kuangshun
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend Top Layer
Colour of Component Legend White
Manufacturer Name or Logo: N/A
VIA Plated through hole(PTH), minimum size 0.4mm.
FLAMIBILITY RATING 94V-0
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.



RF-45 Immersion Silver 30mil RF PCB Board With Blue Solder Coating 0



Other Available RF PCB Material

FR-4 Tg>135, High Tg>170 FR-4 ( S1000-2M, TU-872 SLK, TU-768, IT-180A etc.)

Rogers RO4350B, RO4003C, RO4730G3, RO4360G2, RO3003, RO3035, RO3006, RO3010, RO3210, RO3203, etc.

Rogers RT/duroid 5880, RT/duroid 5870, RT/duroid 6002, RT/duroid 6010, RT/duroid 6035HTC etc.

Rogers TMM4, TMM10, Kappa 438 etc.

PTFE F4B DK2.2, DK2.65

Taconic TLX-0, TLX-9, TLX-8, TLX-7, TLX-6, TLY-5, TLY-3, RF-10, RF-35TC, TLF-35, RF-60A, RF-45, TRF-45 etc.

AD450, AD600, AD1000, TC350 etc.

Metal core PCB, 1W/MK-3W/MK material

Flexible PCB

Megtron 6 (M6) R-5775G



Our PCB Services

PCB prototypes

Mass volume production

Single sided PCB

Double sided PCB

Multilayer PCB up to 32 layers

Heavy copper PCB

Hybrid PCB

Impedance controlled PCB

Via in pad PCB

Ball grid array (BGA) PCB

Blind via PCB

Countersink holes, half hole, press-fit hole

Quick turn-around (QTA) Delivery

No Minimum Order Quantity (MOQ)

Door to Door shipment service



Service Area:
Rogers serves a vast service area, including North America, Oceania, Southeast Asia, Eastern Europe, Africa, Latin America, Western & Southern Europe, Northern Europe, Central & South Asian, and the Middle East. This extensive coverage ensures that customers from different regions can access and benefit from Rogers' products and services.



Typical Applications:
RF-45 laminates find typical applications in various industries. Some of these applications include satellite radio, where the laminates can be used for components or circuitry in satellite radio devices. Additionally, RF-45 laminates are suitable for RFID (Radio Frequency Identification) tags, which are used for tracking and identification purposes across different sectors. These laminates can also be utilized in satellite radio antennas, RFID antennas, and GPS antennas, enabling reliable and efficient signal transmission and reception in these systems.



Overall, Rogers RF-45 laminates offer a versatile range of capabilities, a broad service area, and they find typical applications in satellite radio, RFID tags, satellite radio antennas, RFID antennas, and GPS antennas.



RF-45 Immersion Silver 30mil RF PCB Board With Blue Solder Coating 1



Manufacturing Process of Dual Layer PTH PCB

The immersion gold and HASL PCB are proceeding as following steps: (1). Material Shearing --> (2). Drilling --> (3). PTH --> (4). Dry Film (Circuit) --> (5). Pattern Plating --> (6). Etching --> (7). Solder Mask --> (8). Silkscreen --> (9). Surface Finish --> (10). Profile Contour --> (11). V-groove --> (12). Electrical Test --> (13). Packaging -->(14). Delivery



RF-45 Immersion Silver 30mil RF PCB Board With Blue Solder Coating 2



We can provide you with prototypes, small batches and mass production. Any enquiry, please feel free to contact us.
