Immersion Gold 10.7mil RO4350B Rogers PCB Board For RFID Tags

Immersion Gold 10.7mil RO4350B Rogers PCB Board For RFID Tags
Immersion Gold 10.7mil RO4350B Rogers PCB Board For RFID Tags Immersion Gold 10.7mil RO4350B Rogers PCB Board For RFID Tags

Large Image :  Immersion Gold 10.7mil RO4350B Rogers PCB Board For RFID Tags

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-134.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: Hydrocarbon Ceramic Laminates Layer Count: Double Layer, Multilayer, Hybrid PCB
PCB Size: ≤400mm X 500mm PCB Thickness: 10.7mil (0.272mm), 14mil (0.356mm), 17.3mil (0.439mm), 20.7mil(0.526mm), 30.7mil (0.780mm), 60.7mil(1.542mm)
Solder Mask: Green, Black, Blue, Yellow, Red Etc. Copper Weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
Surface Finish: Bare Copper, HASL, ENIG, OSP, Immersion Tin Etc..
High Light:

10.7mil Rogers PCB Board

,

Immersion Gold Rogers PCB Board

,

RO4350B Rogers PCB Board

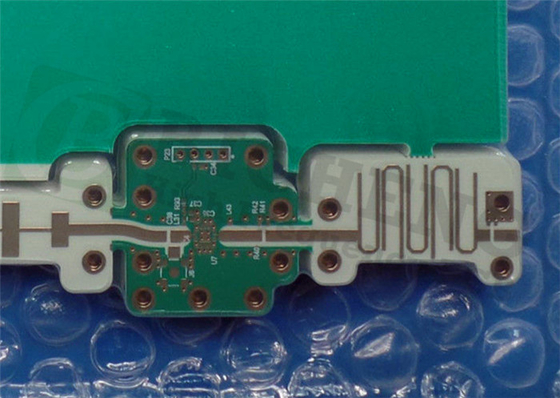

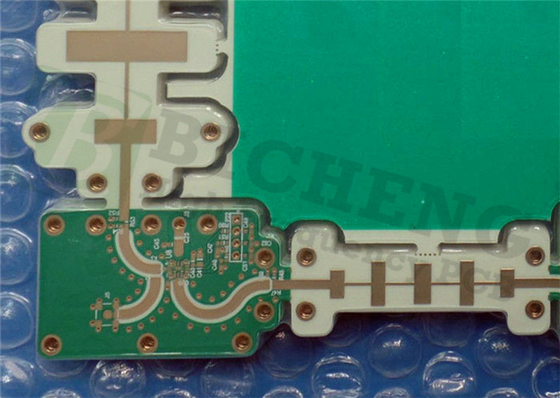

Dual Layer Rogers PCB Built on 10.7mil RO4350B LoPro Reverse Treated Foil WIth Immersion Gold for RFID tags

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



RO4350B LoPro laminates use a proprietary Rogers' technology that allows reverse treated foil to bond to standard RO4350B dielectric. This results in a laminate with low conductor loss for improved insertion loss and signal integrity while maintaining all other desirable attributes of the standard RO4350B laminate system.



Features and Benefits:

RO4350B materials are reinforced hydrocarbon/ceramic laminates with very low profile reverse treated foil.

1. Lower insertion loss

2. Low PIM

3. Increased signal integrity

4. High circuit density



Low Z-axis coefficient of thermal expansion

1. Multi-layer board capability

2. Design flexibility



Lead-free process compatible

1. High temperature processing

2. Meets environmental concerns



CAF resistant



Our PCB Capability (RO4350B LoPro)

PCB Material: Hydrocarbon Ceramic Laminates
Designation: RO4350B LoPro
Dielectric constant: 3.48±0.05
Layer count: Double Layer, Multilayer, Hybrid PCB
Copper weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
PCB thickness: 10.7mil (0.272mm), 14mil (0.356mm), 17.3mil (0.439mm), 20.7mil(0.526mm), 30.7mil (0.780mm), 60.7mil(1.542mm)
PCB size: ≤400mm X 500mm
Solder mask: Green, Black, Blue, Yellow, Red etc.
Surface finish: Bare copper, HASL, ENIG, OSP, Immersion tin etc..



Immersion Gold 10.7mil RO4350B Rogers PCB Board For RFID Tags 0



Some Typical Applications:

1. Digital applications such as servers, routers, and high speed back planes

2. Cellular base station antennas and power amplifiers

3. LNB’s for direct broadcast satellites

4. RF Identification Tags



Typical Properties of RO4350B LoPro

Property Typical Value Direction Units Condition Test Method
Dielectric Constant, Process 3.48 ± 0.05 z -- 10 GHz/23°C IPC-TM-650 2.5.5.5 Clamped Stripline
Dielectric Constant, Design 3.55 z -- 8 to 40 GHz Differential Phase Length Method
Dissipation Factor tan, 0.0037 0.0031 z -- 10 GHz/23°C 2.5 GHz/23°C IPC-TM-650 2.5.5.5
Thermal Coeffifi cient of r 50 z ppm/°C -50°C to 150°C IPC-TM-650 2.5.5.5
Volume Resistivity 1.2 X 1010   MΩ•cm COND A IPC-TM-650 2.5.17.1
Surface Resistivity 5.7 X 109   COND A IPC-TM-650 2.5.17.1
Electrical Strength 31.2(780) z KV/mm(V/mil) 0.51mm(0.020”) IPC-TM-650 2.5.6.2
Tensile Modulus 11473(1664) Y MPa(kpsi) RT ASTM D638
Tensile Strength 175(25.4) Y MPa(kpsi) RT ASTM D638
Flexural Strength 255(37)   MPa(kpsi)   IPC-TM-650 2.4.4
Dimensional Stability <0.5 X,Y mm/m(mils/inch) after etch +E2/150°C IPC-TM-650 2.4.39A
Coeffifi cient of Thermal Expansion 14 x ppm/°C -55 to 288°C IPC-TM-650 2.1.41
16 y
35 z
Tg >280   °C TMA A IPC-TM-650 2.4.24.3
Td 390   °C TGA   ASTM D3850
Thermal Conductivity 0.62   W/m/°K 80°C ASTM C518
Moisture Absorption 0.06   % 48 hrs immersion 0.060” sample Temperature 50°C ASTM D570
Density 1.86   gm/cm3 23°C ASTM D792
Copper Peel Strength 0.88(5.0)   N/mm(pli) after solder float 1 oz. TC Foil IPC-TM-650 2.4.8
Flammability V-0       UL 94
Lead-Free Process Compatible Yes
