20.7mil RO 4003C LoPro Double Layer Printed Circuit Board Hydrocarbon Ceramic

20.7mil RO 4003C LoPro Double Layer Printed Circuit Board Hydrocarbon Ceramic
20.7mil RO 4003C LoPro Double Layer Printed Circuit Board Hydrocarbon Ceramic 20.7mil RO 4003C LoPro Double Layer Printed Circuit Board Hydrocarbon Ceramic 20.7mil RO 4003C LoPro Double Layer Printed Circuit Board Hydrocarbon Ceramic

Large Image :  20.7mil RO 4003C LoPro Double Layer Printed Circuit Board Hydrocarbon Ceramic

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-131.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: Hydrocarbon Ceramic Laminates Layer Count: Double Layer, Multilayer, Hybrid PCB
PCB Size: ≤400mm X 500mm PCB Thickness: 12.7mil (0.323mm), 16.7mil (0.424mm), 20.7mil(0.526mm), 32.7mil (0.831mm), 60.7mil(1.542mm)
Solder Mask: Green, Black, Blue, Yellow, Red Etc. Coppweight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
Surfacre Finish: Bare Copper, HASL, ENIG, OSP, Immersion Tin Etc..
High Light:

20.7mil Double Layer Printed Circuit Board

,

RO4003C LoPro Double Layer Printed Circuit Board

,

RO4003C LoPro Double Side PCB

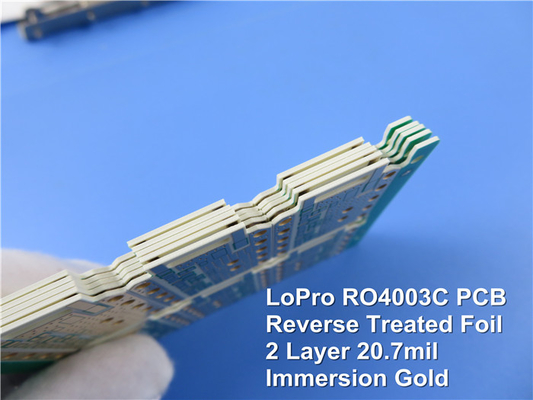

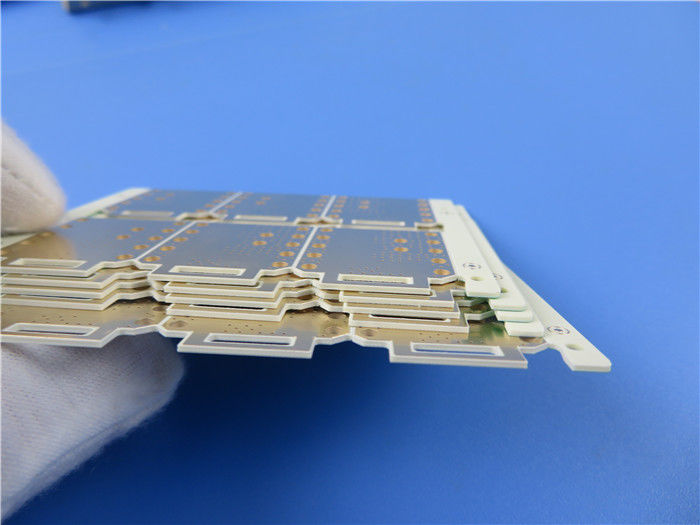

Double Layer Rogers PCB Built on 20.7mil RO4003C LoPro Reverse Treated Foil for Low Noise Block.

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



RO4003C LoPro laminates use a proprietary Rogers' technology that allows reverse treated foil to bond to standard RO4003C dielectric. This results in a laminate with low conductor loss for improved insertion loss and signal integrity while maintaining all other desirable attributes of the standard RO4003C laminate system.



Features and Benefits:

RO4003C materials are reinforced hydrocarbon/ceramic laminates with very low profile reverse treated foil.

1. Lower insertion loss

2. Low PIM

3. Increased signal integrity

4. High circuit density



Low Z-axis coefficient of thermal expansion

1. Multi-layer board capability

2. Design flexibility



Lead-free process compatible

1. High temperature processing

2. Meets environmental concerns



CAF resistant



Our PCB Capability (RO4003C LoPro)

PCB Material: Hydrocarbon Ceramic Laminates
Designation: RO4003C LoPro
Dielectric constant: 3.38±0.05
Layer count: Double Layer, Multilayer, Hybrid PCB
Copper weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
PCB thickness: 12.7mil (0.323mm), 16.7mil (0.424mm), 20.7mil(0.526mm), 32.7mil (0.831mm), 60.7mil(1.542mm)
PCB size: ≤400mm X 500mm
Solder mask: Green, Black, Blue, Yellow, Red etc.
Surface finish: Bare copper, HASL, ENIG, OSP, Immersion tin etc..



Some Typical Applications:

1. Digital applications such as servers, routers, and high speed back planes

2. Cellular base station antennas and power amplifiers

3. LNB’s for direct broadcast satellites

4. RF Identification Tags



Typical Properties of RO4003C LoPro

Property Typical Value Direction Units Condition Test Method
Dielectric Constant, Process 3.38 ± 0.05 z -- 10 GHz/23°C IPC-TM-650 2.5.5.5 Clamped Stripline
Dielectric Constant, Design 3.5 z -- 8 to 40 GHz Differential Phase Length Method
Dissipation Factor tan, 0.0027 0.0021 z -- 10 GHz/23°C 2.5 GHz/23°C IPC-TM-650 2.5.5.5
Thermal Coeffifi cient of r 40 z ppm/°C -50°C to 150°C IPC-TM-650 2.5.5.5
Volume Resistivity 1.7 X 1010   MΩ•cm COND A IPC-TM-650 2.5.17.1
Surface Resistivity 4.2 X 109   COND A IPC-TM-650 2.5.17.1
Electrical Strength 31.2(780) z KV/mm(V/mil) 0.51mm(0.020”) IPC-TM-650 2.5.6.2
Tensile Modulus 26889(3900) Y MPa(kpsi) RT ASTM D638
Tensile Strength 141(20.4) Y MPa(kpsi) RT ASTM D638
Flexural Strength 276(40)   MPa(kpsi)   IPC-TM-650 2.4.4
Dimensional Stability <0.3 X,Y mm/m(mils/inch) after etch +E2/150°C IPC-TM-650 2.4.39A
Coeffifi cient of Thermal Expansion 11 x ppm/°C -55 to 288°C IPC-TM-650 2.1.41
14 y
46 z
Tg >280   °C TMA A IPC-TM-650 2.4.24.3
Td 425   °C TGA   ASTM D3850
Thermal Conductivity 0.64   W/m/°K 80°C ASTM C518
Moisture Absorption 0.06   % 48 hrs immersion 0.060” sample Temperature 50°C ASTM D570
Density 1.79   gm/cm3 23°C ASTM D792
Copper Peel Strength 1.05(6.0)   N/mm(pli) after solder float 1 oz. TC Foil IPC-TM-650 2.4.8
Flammability N/A       UL 94
Lead-Free Process Compatible Yes
