UL Laser Cut Solder Paste Stencils 0.1mm Circuit Board Stencil

UL Laser Cut Solder Paste Stencils 0.1mm Circuit Board Stencil
UL Laser Cut Solder Paste Stencils 0.1mm Circuit Board Stencil UL Laser Cut Solder Paste Stencils 0.1mm Circuit Board Stencil UL Laser Cut Solder Paste Stencils 0.1mm Circuit Board Stencil UL Laser Cut Solder Paste Stencils 0.1mm Circuit Board Stencil UL Laser Cut Solder Paste Stencils 0.1mm Circuit Board Stencil UL Laser Cut Solder Paste Stencils 0.1mm Circuit Board Stencil

Large Image :  UL Laser Cut Solder Paste Stencils 0.1mm Circuit Board Stencil

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-956.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: Stainless Steel Shim Stencil Size: 370mm X 470mm, 420mm X 520mm, 550mm X 650mm
Foil Thickness: 0.05mm, 0.06mm, 0.08mm, 0.1mm, 0.12mm, 0.15mm, 0.18mm, 0.2mm Appearance: Engraving And Electro Polishing
High Light:

0.1mm Laser Cut Solder Paste Stencils

,

UL Laser Cut Solder Paste Stencils

,

0.1mm Circuit Board Stencil



SMT PCB Assembly Solder Paste Stencil | PCB Stencil Laser Cut

1.1 General description

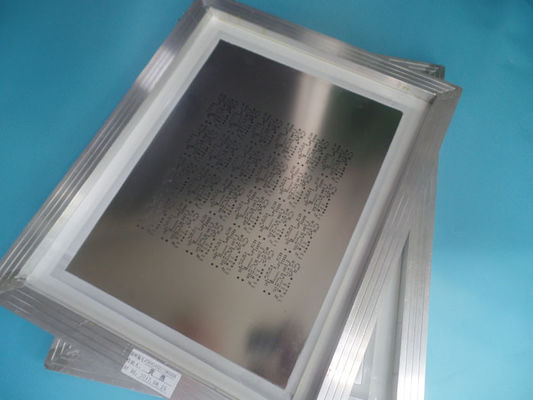

This is a type of solder paste SMT stencil (100% laser cut) built on 0.1mm stainless steel foil with aluminum frame 420 mm x 520 mm x 20mm dimension. It’s fabricated per IPC 7525A using supplied Gerber data, squeegee area locating in the center. Fiducal marks are through holes to suit for the SMT machine. It’s packed with KK carton (hard card) and usually 2 stencils are packed for shipment.

1.2 Features and benifits
The data file is used directly to produce and reduce the error rate;
The opening position accuracy of SMT template is very high: the whole process error is ≤ ±4 μ m;
The opening of SMT template has geometric figure, which is advantageous to the printing and forming of tin paste;
Engineering design prevents problems from occurring in pre production;
Team with passion, discipline, responsibility and honesty;
Door to door shipment service;
More than 15 years of experience;
Hassle-free, one-to-one after-sales service;

UL Laser Cut Solder Paste Stencils 0.1mm Circuit Board Stencil 0UL Laser Cut Solder Paste Stencils 0.1mm Circuit Board Stencil 1UL Laser Cut Solder Paste Stencils 0.1mm Circuit Board Stencil 2

1.3 Applications
SMD package such as PLCC,QFP,0402,0201,BGA,Flip Chip.

1.4 Parameter and data sheet
Dimension: 370mm x 470mm, 420mm x 520mm, 550mm x 650mm
Structure Stencil foils with aluminum frame
Base material Stainless steel shim
Foil Thickness 0.05mm, 0.06mm, 0.08mm, 0.1mm, 0.12mm, 0.15mm, 0.18mm, 0.2mm
Aperture configured Laser cut
Appearance Engraving and electro polishing
Fiducial mark Through hole
Service area: Worldwide
Quantity of open pads: 1421
Advantages: a) High precision dimension; b) Good shape on the window; c) Hole wall is smoother.
Application: CSP, BGA, 0.5mm QFP etc. package

1.5 Opening Holes Design for SMT Stencil
Component Type Pitch Soldering Width Soldering Length Opening Width Opening Length Shim Thickness
PLCC 1.27mm 0.65mm 2.00mm 0.60mm 1.95mm 0.15-0.25mm
QFP 0.635mm 0.35mm 1.50mm 0.32mm 1.45mm 0.15-0.18mm
QFP 0.50mm 0.254-0.33mm 1.25mm 0.22-0.25mm 1.20mm 0.12-0.15mm
QFP 0.40mm 0.25mm 1.25mm 0.20mm 1.20mm 0.10-0.12mm
QFP 0.30mm 0.20mm 1.00mm 0.15mm 0.95mm 0.07-0.12mm
0402   0.50mm 0.65mm 0.45mm 0.60mm 0.12-0.15mm
0201   0.25mm 0.40mm 0.23mm 0.35mm 0.07-0.12mm
BGA 1.27mm 0.80mm   0.75mm 0.75mm 0.15-0.20mm
BGA 1.00mm 0.38mm   0.35mm 0.35mm 0.10-0.12mm
BGA 0.50mm 0.30mm   0.28mm 0.28mm 0.07-0.12mm
Flip Chip 0.25mm 0.12mm 0.12mm 0.12mm 0.12mm 0.08-0.10mm
Flip Chip 0.20mm 0.10mm 0.10mm 0.10mm 0.10mm 0.05-0.10mm



UL Laser Cut Solder Paste Stencils 0.1mm Circuit Board Stencil 3UL Laser Cut Solder Paste Stencils 0.1mm Circuit Board Stencil 4UL Laser Cut Solder Paste Stencils 0.1mm Circuit Board Stencil 5
