Product Details:
Payment & Shipping Terms:
|
| Base Material: | Polyimide | Layer Count: | 2 Layers |
|---|---|---|---|
| PCB Thickness: | 0.25mm | PCB Size: | 130.18 X 20.5mm |
| Coverlay: | Yellow | Silkscreen: | White |
| Copper Weight: | 1oz | Surface Finish: | Immersion Gold |
| High Light: | Dual Layer Flexible PCB Board,0.25mm Flexible PCB Board,0.25mm Dual Layer PCB |
||

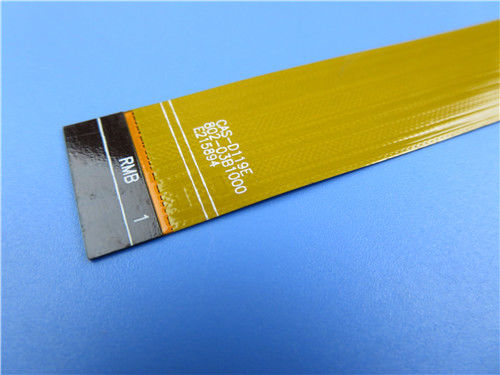

Dual Layer Flexible Printed Circuit Board on Polyimide With Yellow Mask and PI Stiffener for Thin-film Switch
(Flexible printed circuits are custom-made products, the picture and parameters shown are just for reference)
General description
This is a type of flexible printed circuit for the application of Controlled Access. It’s a 2 layer FPC at 0.25mm thick. The base laminate is from ITEQ, It’s fabricated per IPC 6012 Class 2 using supplied Gerber data. Polyimide stiffener is applied on the inserting part.
Parameter and data sheet
| Size of Flexible PCB | 130.18 X 20.5mm |
| Number of Layers | 2 |
| Board Type | Flexible PCB |
| Board Thickness | 0.25mm |
| Board Material | Polyimide 50 µm |
| Board Material Supplier | ITEQ |
| Tg Value of Board Material | 60℃ |
| PTH Cu thickness | ≥20 µm |
| Inner Iayer Cu thicknes | N/A |
| Surface Cu thickness | 35 µm |
| Coverlay Colour | Yellow |
| Number of Coverlay | 2 |
| Thickness of Coverlay | 35 µm |
| Stiffener Material | Polyimide |
| Stiffener Thickness | 0.2mm |
| Type of Silkscreen Ink | IJR-4000 MW300 |
| Supplier of Silkscreen | TAIYO |
| Color of Silkscreen | White |
| Number of Silkscreen | 1 |
| Peeling test of Coverlay | No peelable |
| Legend Adhesion | 3M 90℃ No peeling after Min. 3 times test |
| Surface Finish | Immersion Gold |
| Thickness of Nickle/Gold | Au: 0.03µm(Min.); Ni 2-4µm |
| RoHS Required | Yes |
| Famability | 94-V0 |
| Thermal Shock Test | Pass, -25℃±125℃, 1000 cycles. |
| Thermal Stress | Pass, 300±5℃,10 seconds, 3 cycles. No delamination, no blistering. |
| Function | 100% Pass electrical test |
| Workmanship | Compliance with IPC-A-600H & IPC-6013C Class 2 |
Features and benefits
Excellent flexibility
Reducing the volume
Weight reduction
Consistency of assembly
Increased reliability
The end can be whole soldered
Low cost
Continuity of processing
Small quantity order is accepted
Engineering design prevents problems from occurring in pre-production.
Applications
Thin-film switch, mobile phone module flex board mobile phone module flex board
Brief Introduction of FPC
Flexible Printed Circuit Board (FPC) is referred to as "soft board". In the industry, FPC is a printed circuit board made of flexible insulating substrate (mainly polyimide or polyester film), which has many advantages that rigid printed circuit boards do not have. For example, it can be freely bent, wound, folded. The volume of electronic products can be greatly reduced by using FPC, which is suitable for the development of electronic products in the direction of high density, miniaturization and high reliability. Therefore, FPC has been widely used in aerospace, military, mobile communication, laptop, computer peripherals, PDA, digital camera and other fields or products.
FPC also has the advantages of good heat dissipation, solderability, easy mounting and low cost.
Flexible printed circuit board has one layer, two layers and multilayer board. The base material is polyimide clad laminate. This kind of material has high heat resistance and good dimensional stability. It is the final product through pressing with the coating film which has both mechanical protection and good electrical insulation. The surface and inner conductors of double-sided and multi-layer printed circuit boards are metallized to realize the electrical connection of inner and outer layers.
The function of flexible circuit board can be divided into four kinds, namely, lead line, printed circuit, connector and multifunction integrated system, which cover computer, computer peripheral auxiliary system, consumer household electrical appliance and automobile, etc.
