| Base Material: | RO3035 | Layer Count: | 2 Layers |
|---|---|---|---|
| PCB Thickness: | 0.8mm | PCB Size: | 140 X 52mm=20PCS |
| Copper Weight: | 0.5oz | Surface Finish: | Immersion Gold |
| High Light: | RO3035 RF PCB Board,30mil RF PCB Board,RO3035 Double Sided PCB |
||

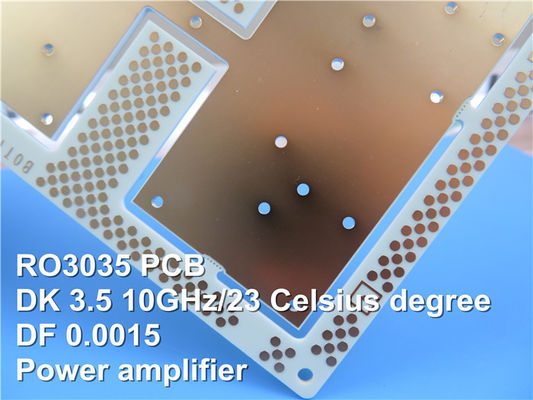

Rogers RO3035 30mil 0.762mm High Frequency PCB DK3.5 RF PCB for Datalink On Cable Systems
(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)
Rogers RO3035 high frequency circuit materials are ceramic-filled PTFE composites intended for use in commercial microwave and RF applications. It was designed to offer exceptional electrical and mechanical stability at competitive prices. The mechanical properties are consistent. This allows the designer to develop multi-layer board designs without encountering warpages or reliability problems. RO3035 materials exhibit a coefficient of thermal expansion(CTE) in the X and Y axis of 17 ppm/℃. This expansion coefficient is matched to that of copper, which allows the material to exhibit excellent dimensional stability, with typical etch shrinkage, after etch and bake, of less than 0.5 mils per inch. The Z-axis CTE is 24 ppm/℃, which provides exceptional plated through-hole reliability, even in severe environments.
Data Sheet of Rogers 3035 (RO3035)
| RO3035 Typical Value | |||||
| Property | RO3035 | Direction | Units | Condition | Test Method |
| Dielectric Constant,εProcess | 3.50±0.05 | Z | 10 GHz/23℃ | IPC-TM-650 2.5.5.5 Clamped Stripline | |
| Dielectric Constant,εDesign | 3.6 | Z | 8GHz to 40 GHz | Differential Phase Length Method | |
| Dissipation Factor,tanδ | 0.0015 | Z | 10 GHz/23℃ | IPC-TM-650 2.5.5.5 | |
| Thermal Coefficient of ε | -45 | Z | ppm/℃ | 10 GHz -50℃to 150℃ | IPC-TM-650 2.5.5.5 |
| Dimensional Stability | 0.11 0.11 |
X Y |
mm/m | COND A | IPC-TM-650 2.2.4 |
| Volume Resistivity | 107 | MΩ.cm | COND A | IPC 2.5.17.1 | |
| Surface Resistivity | 107 | MΩ | COND A | IPC 2.5.17.1 | |
| Tensile Modulus | 1025 1006 |
X Y |
MPa | 23℃ | ASTM D 638 |
| Moisture Absorption | 0.04 | % | D48/50 | IPC-TM-650 2.6.2.1 | |
| Specific Heat | j/g/k | Calculated | |||
| Thermal Conductivity | 0.5 | W/M/K | 50℃ | ASTM D 5470 | |
| Coefficient of Thermal Expansion (-55 to 288℃) |
17 17 24 |
X Y Z |
ppm/℃ | 23℃/50% RH | IPC-TM-650 2.4.4.1 |
| Td | 500 | ℃ TGA | ASTM D 3850 | ||
| Density | 2.1 | gm/cm3 | 23℃ | ASTM D 792 | |
| Copper Peel Stength | 10.2 | Ib/in. | 1oz,EDC After Solder Float | IPC-TM 2.4.8 | |
| Flammability | V-0 | UL 94 | |||
| Lead-free Process Compatible | Yes | ||||
Typical applications:
1) Automotive radar
2) Cellular telecommunications systems
3) Datalink on cable systems
4) Direct broadcast satellites
5) Global positioning satellite antennas
6) Patch antenna for wireless communications
7) Power amplifiers and antennas
8) Power backplanes
9) Remote meter readers
PCB Specifications
| PCB SIZE | 140 x 52mm=20PCS |
| BOARD TYPE | Double sided PCB |
| Number of Layers | 2 layers |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 18um(0.5 oz)+plate TOP layer |
| RO3035 0.762mm | |
| copper ------- 18um(0.5 oz) + plate BOT Layer | |
| TECHNOLOGY | |
| Minimum Trace and Space: | 4 mil / 4 mil |
| Minimum / Maximum Holes: | 0.5 mm / 5.0 mm |
| Number of Different Holes: | 11 |
| Number of Drill Holes: | 125 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | RO3035 0.762mm |
| Final foil external: | 1oz |
| Final foil internal: | N/A |
| Final height of PCB: | 0.8 mm ±0.1mm |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold |
| Solder Mask Apply To: | N/A |
| Solder Mask Color: | N/A |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | N/A |
| Colour of Component Legend | N/A |
| Manufacturer Name or Logo: | N/A |
| VIA | Plated through hole(PTH), minimum size 0.5mm. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
